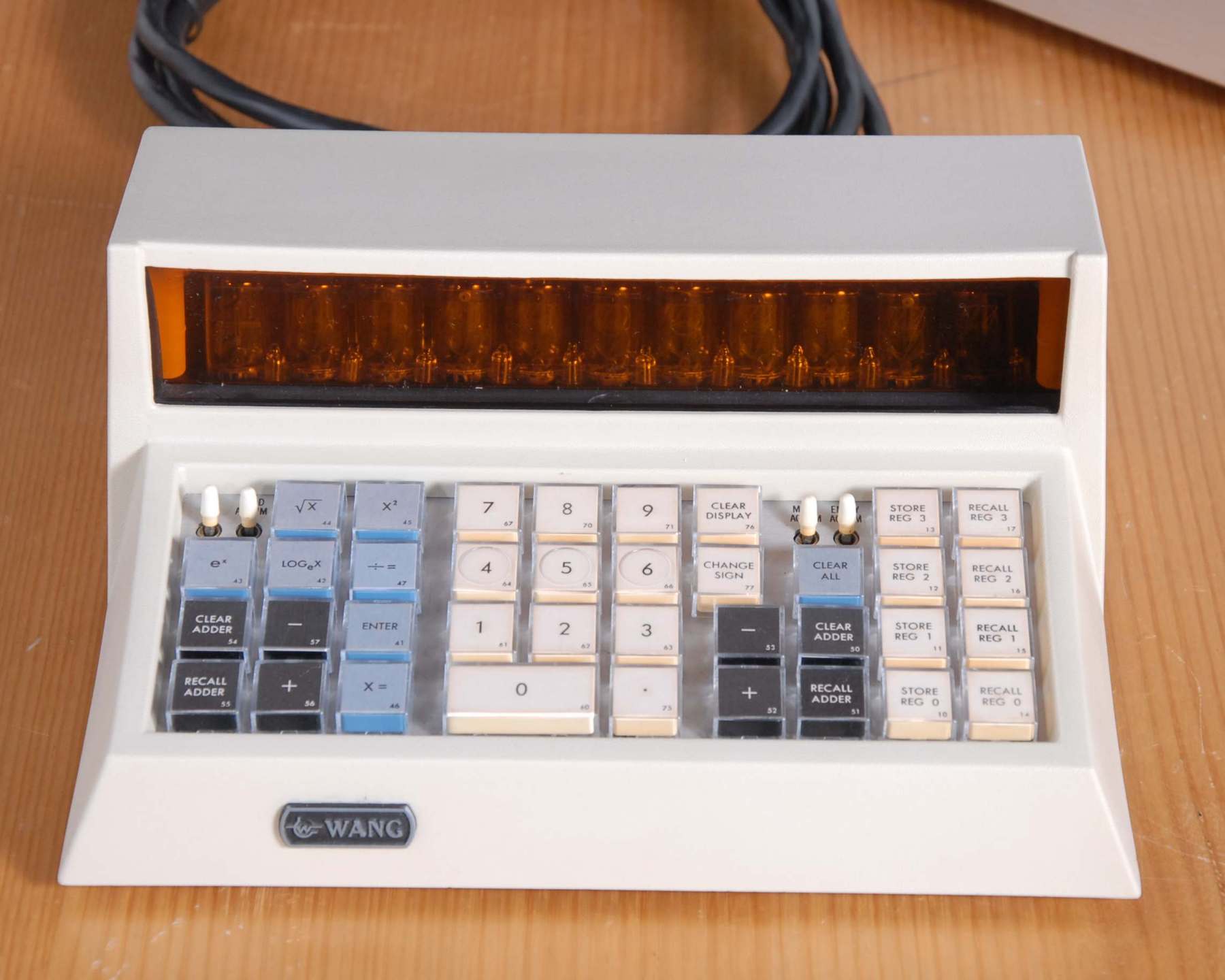

Back to Wang OverviewWang 360E Calculator



Wang 360E

Wang 360E
Wang 360E
Wang 360E
Wang 360E

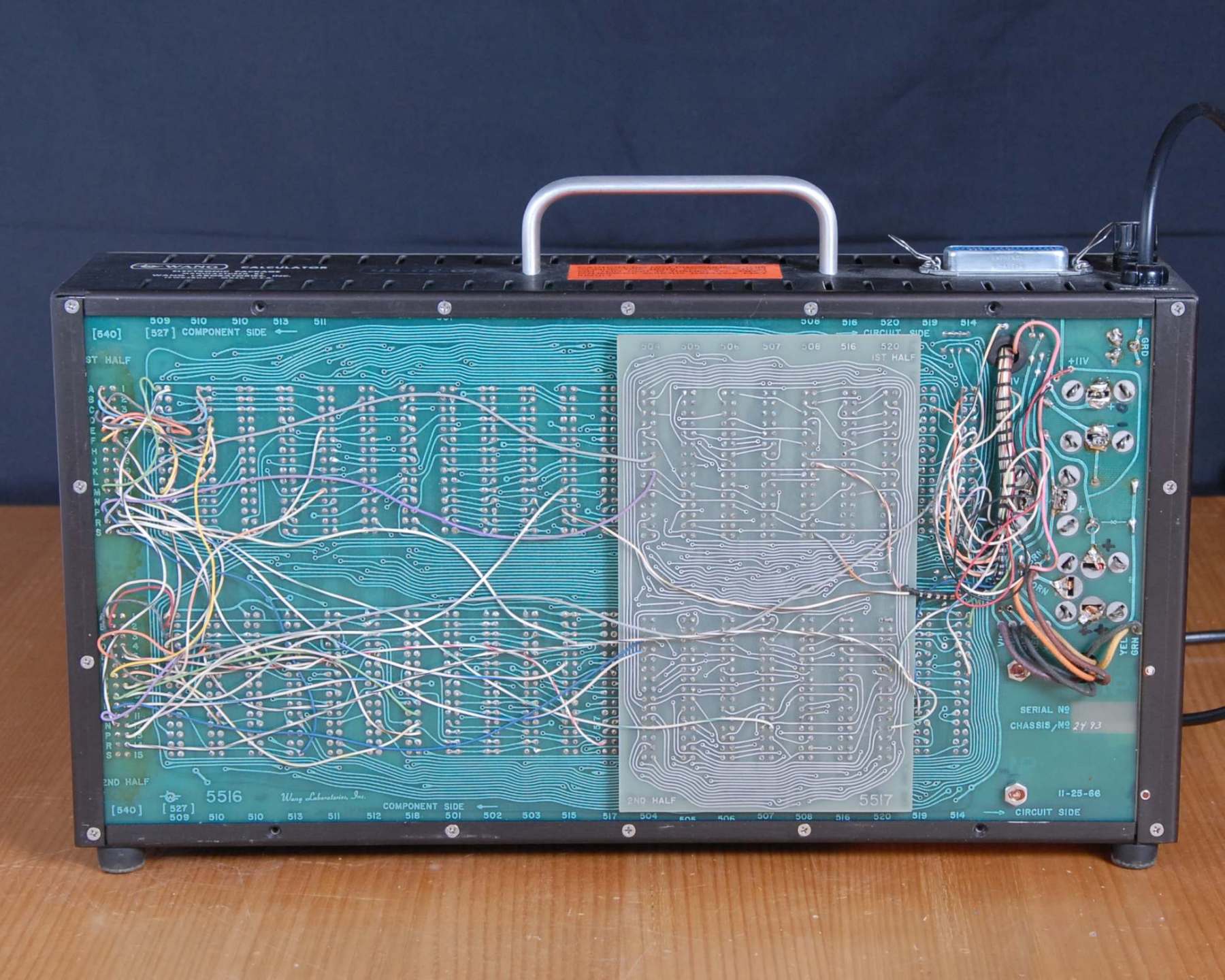

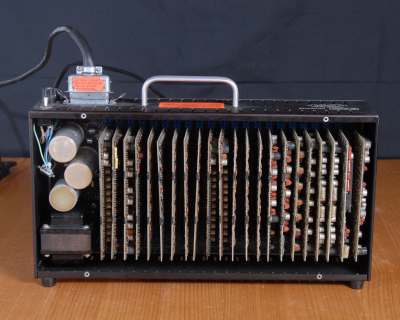

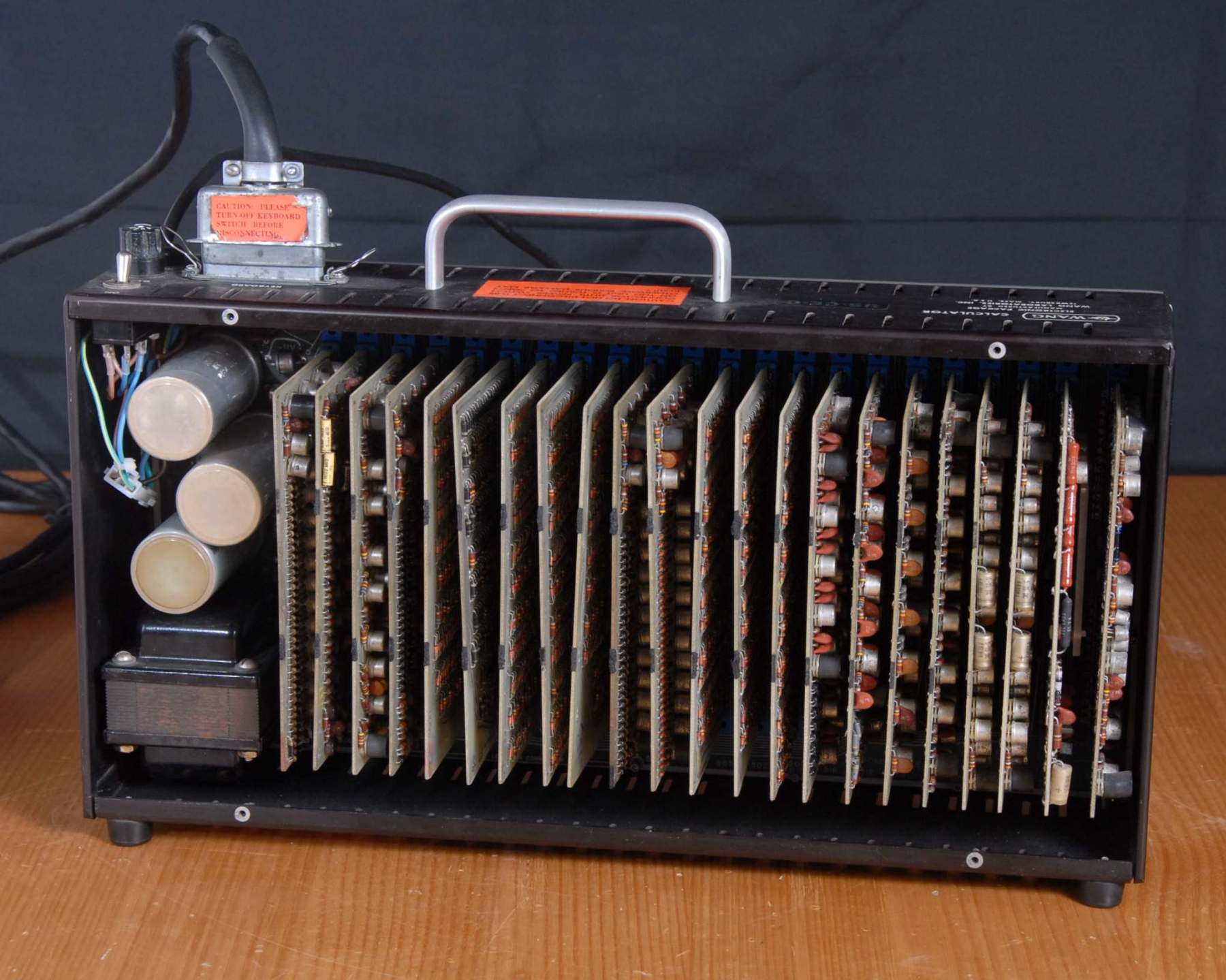

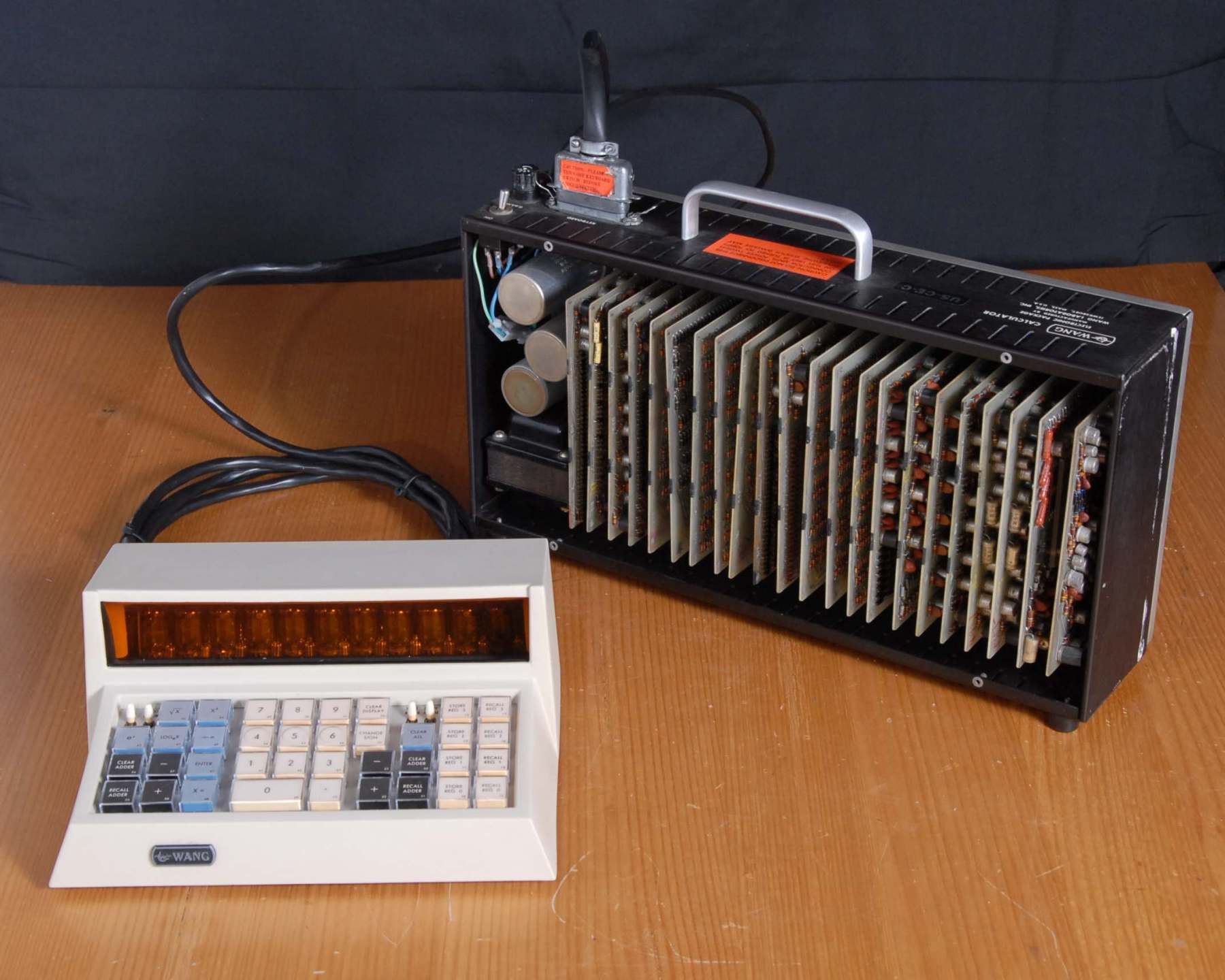

Wang 360E Construction

Wang 360E Construction
Wang 360E Construction
Wang 360E Construction
Wang 360E Construction



Wang 360E Circuit Boards

501 Log Generator

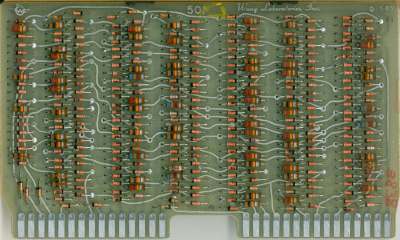

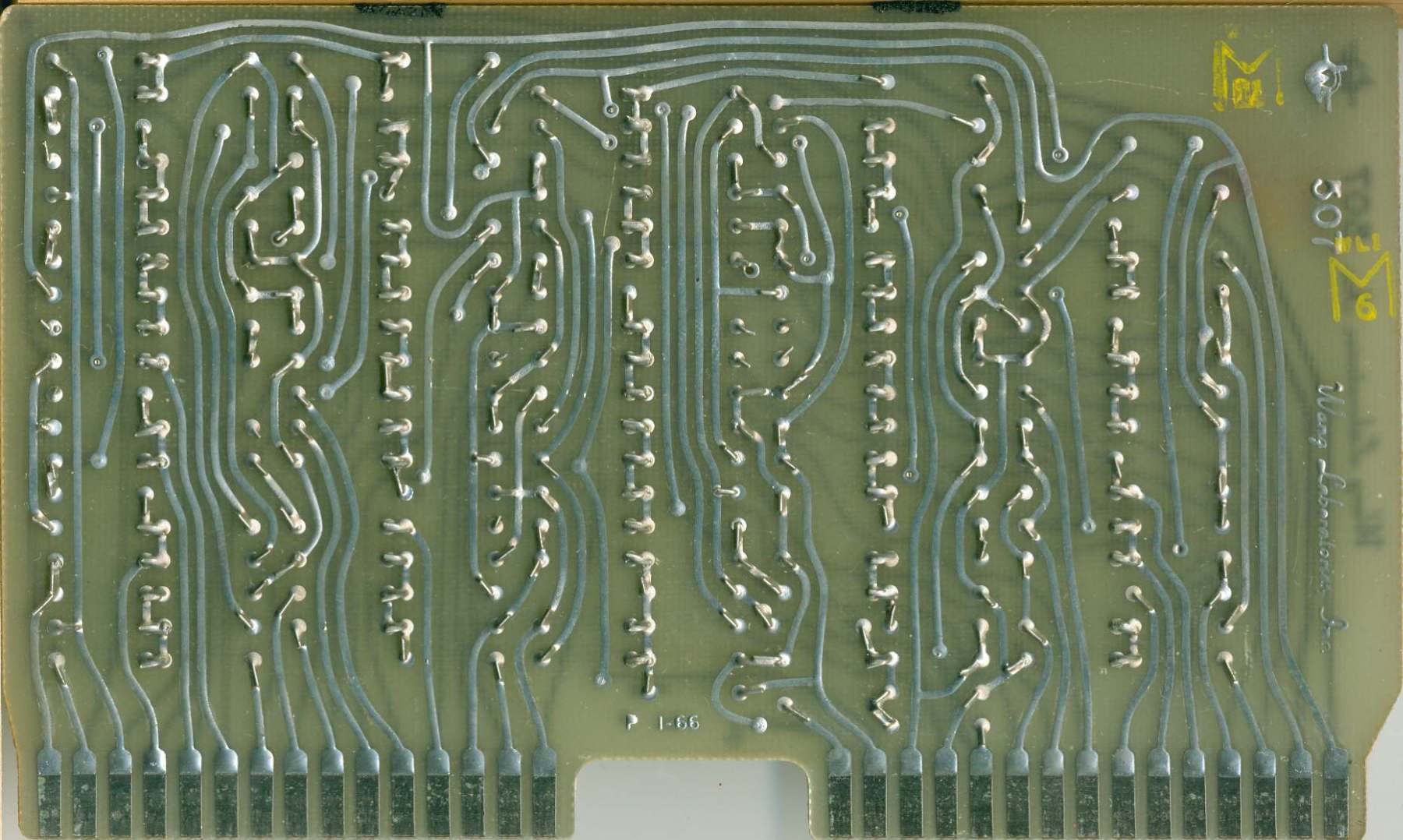

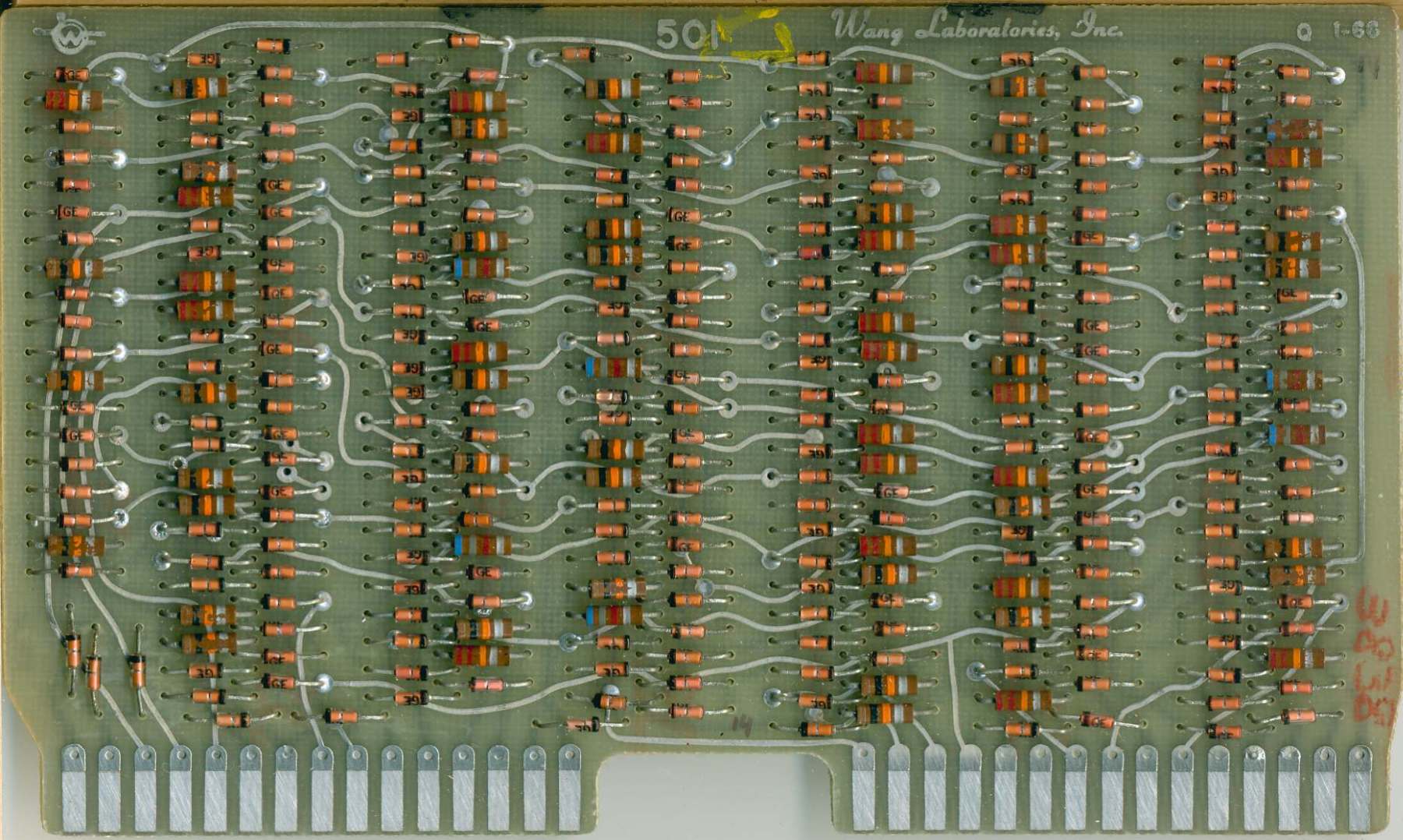

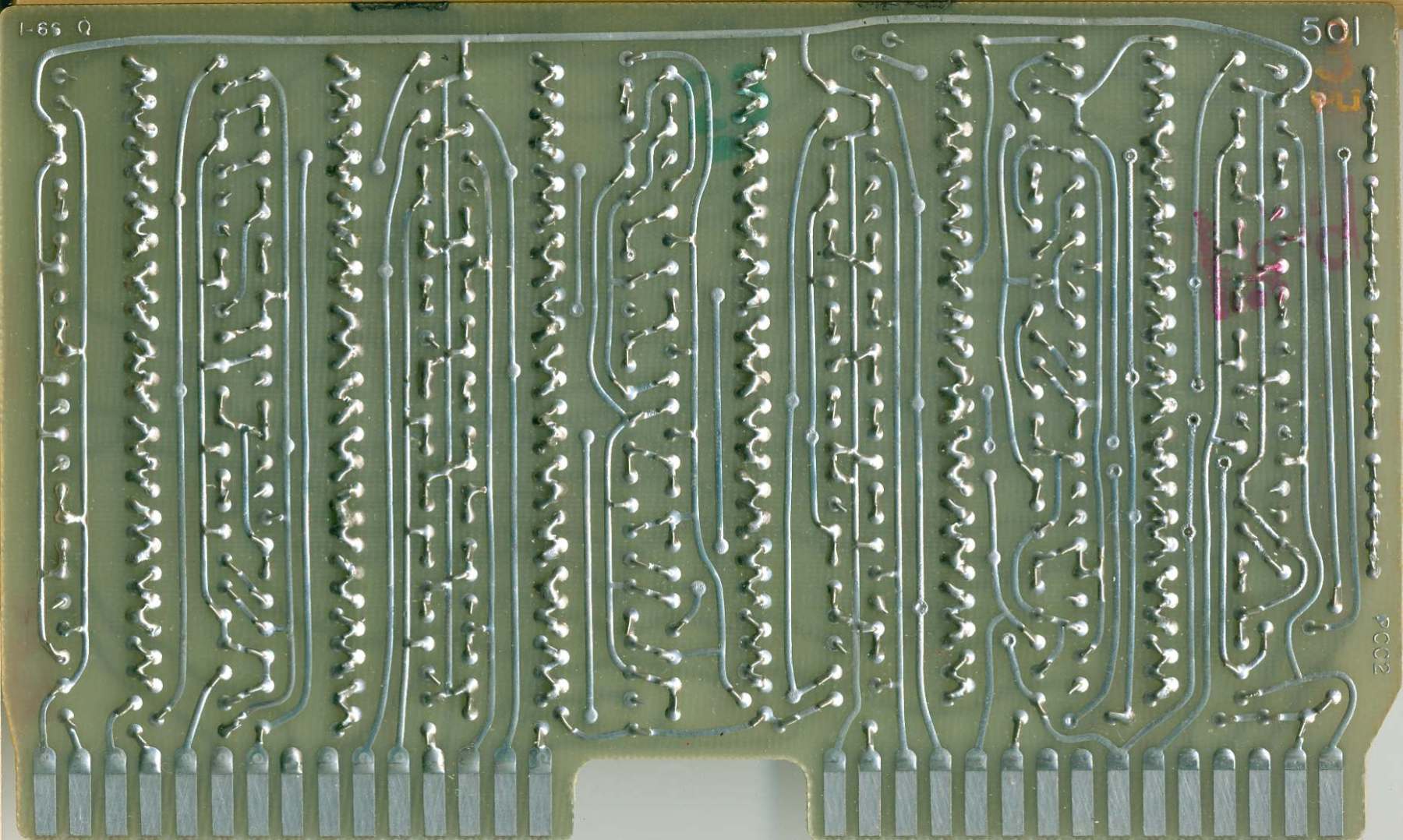

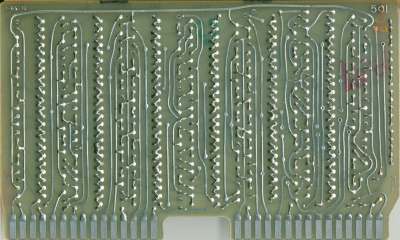

Wang 360E Calculator Circuit Board 501 Wang 360E Calculator Circuit Board 501

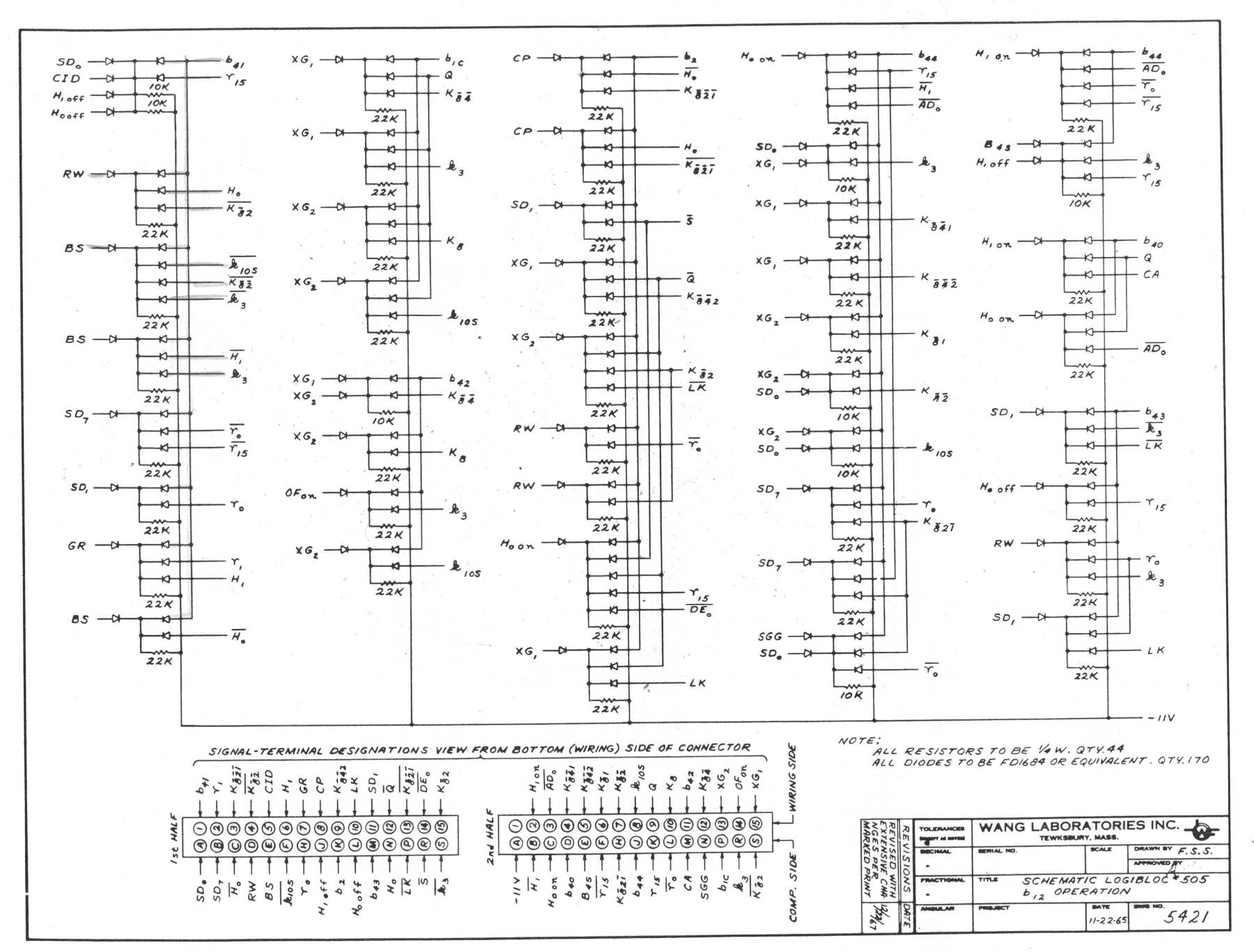

505 b1/2 States [Circuit]

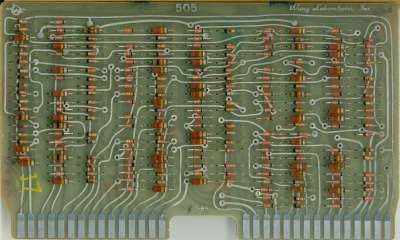

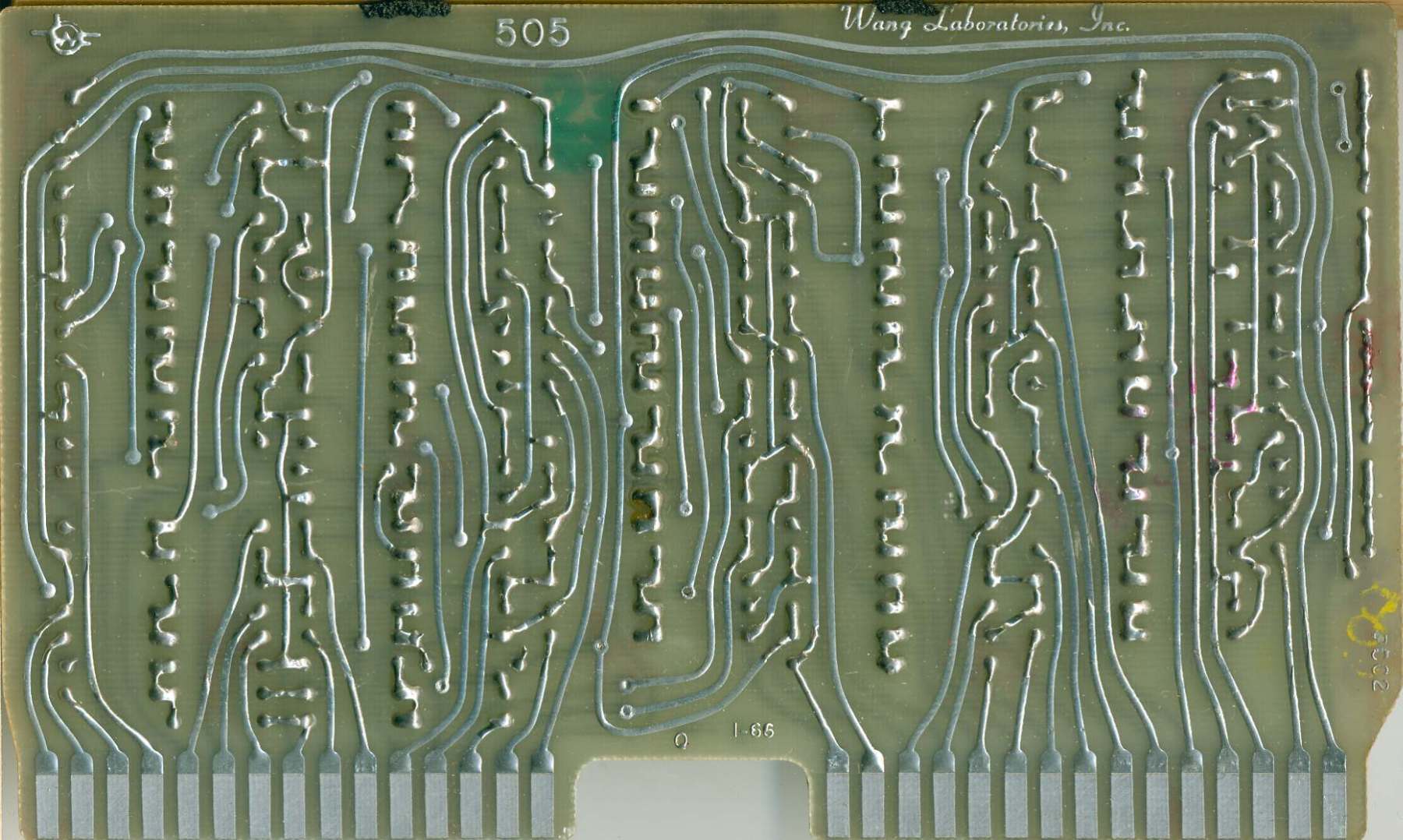

Wang 360E Calculator Circuit Board 505 Wang 360E Calculator Circuit Board 505

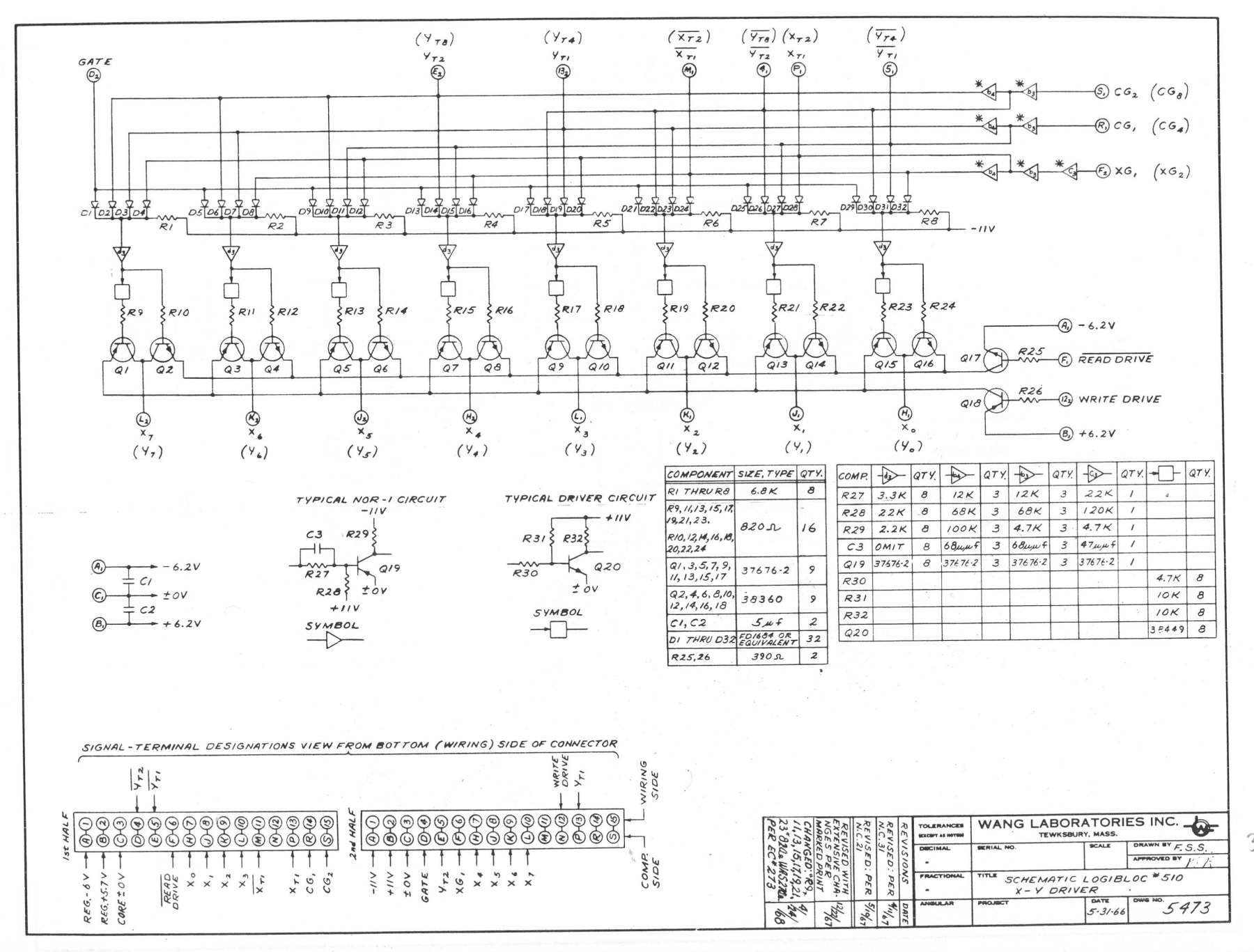

510 Core Driver [Circuit]

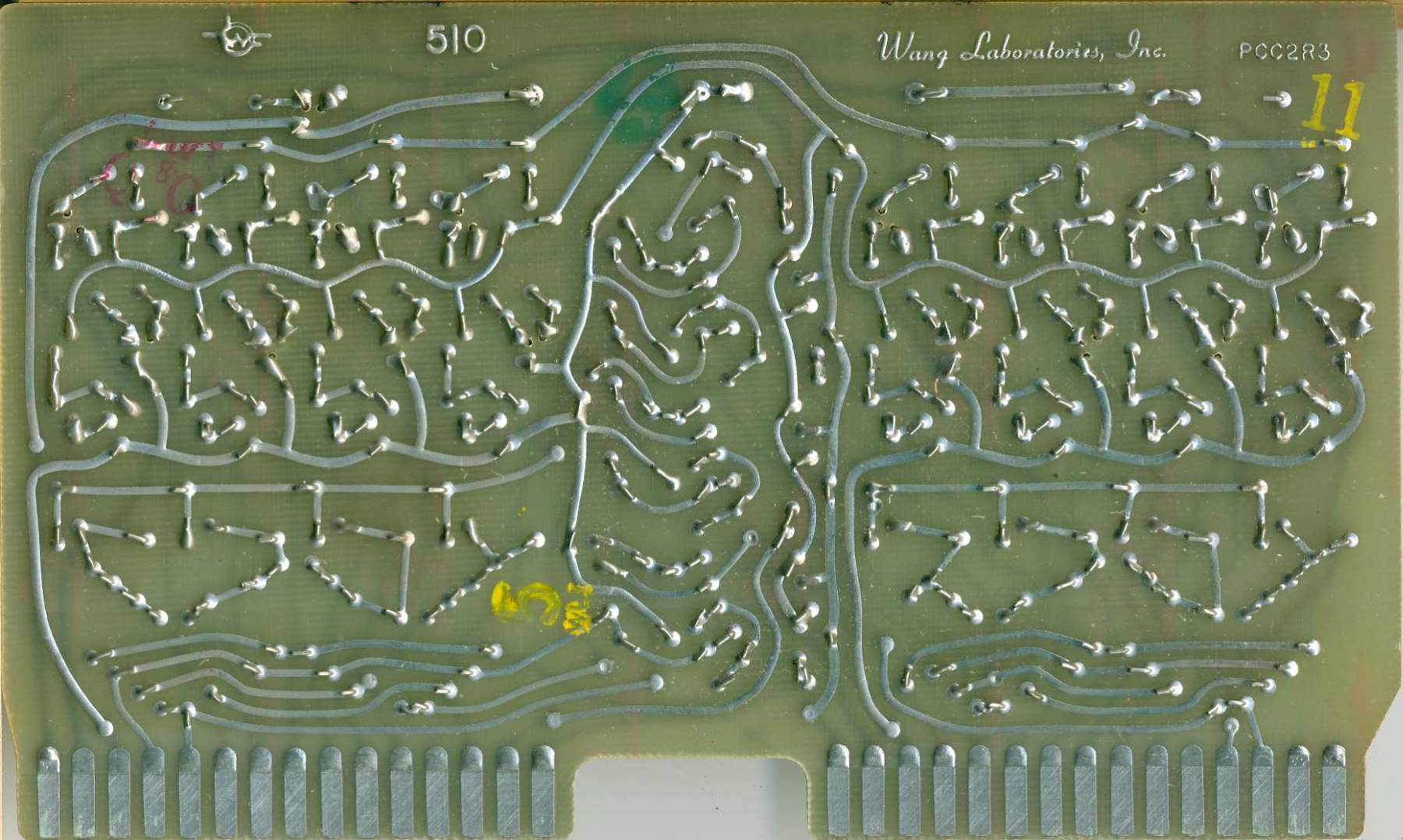

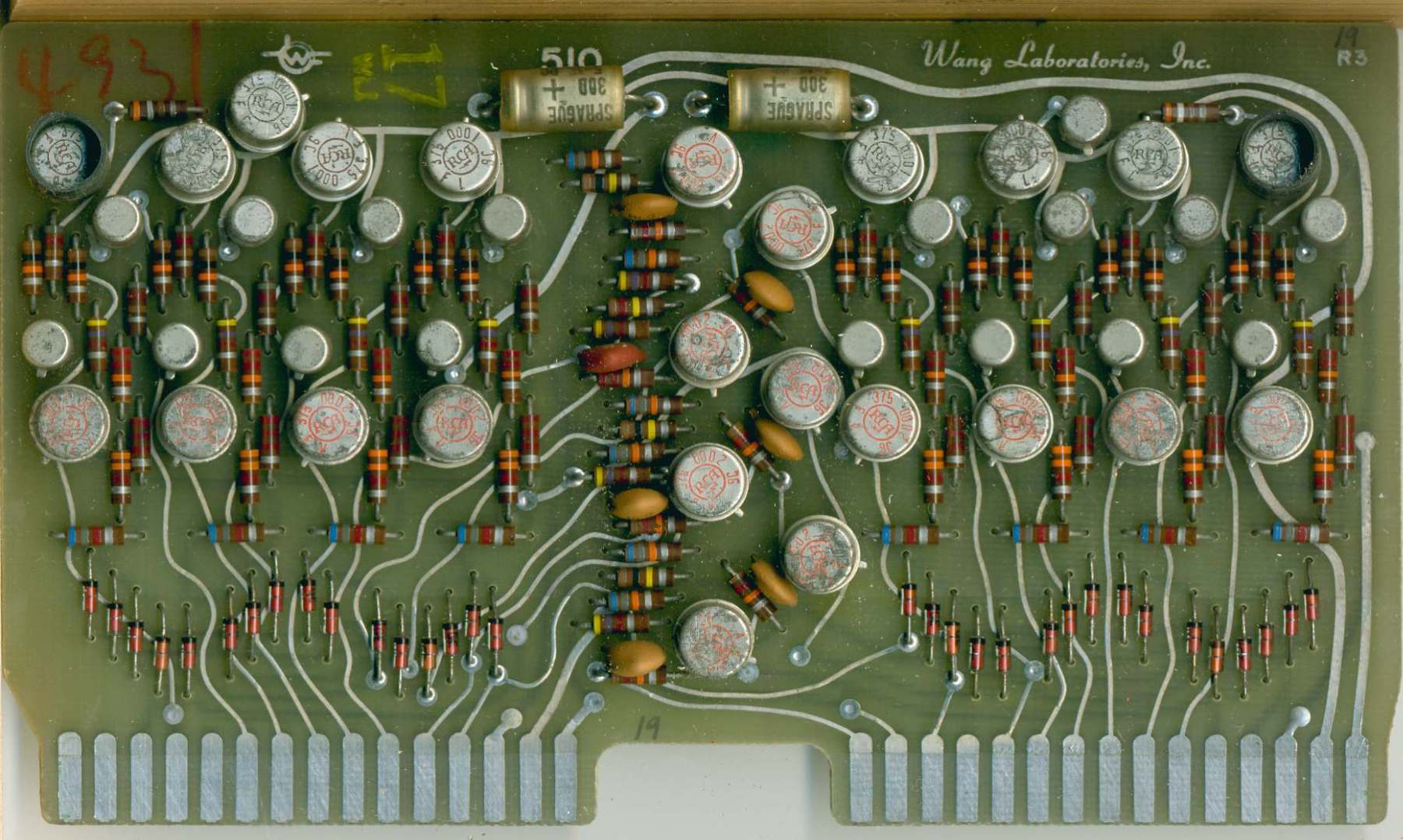

Wang 360E Calculator Circuit Board 510 Wang 360E Calculator Circuit Board 510

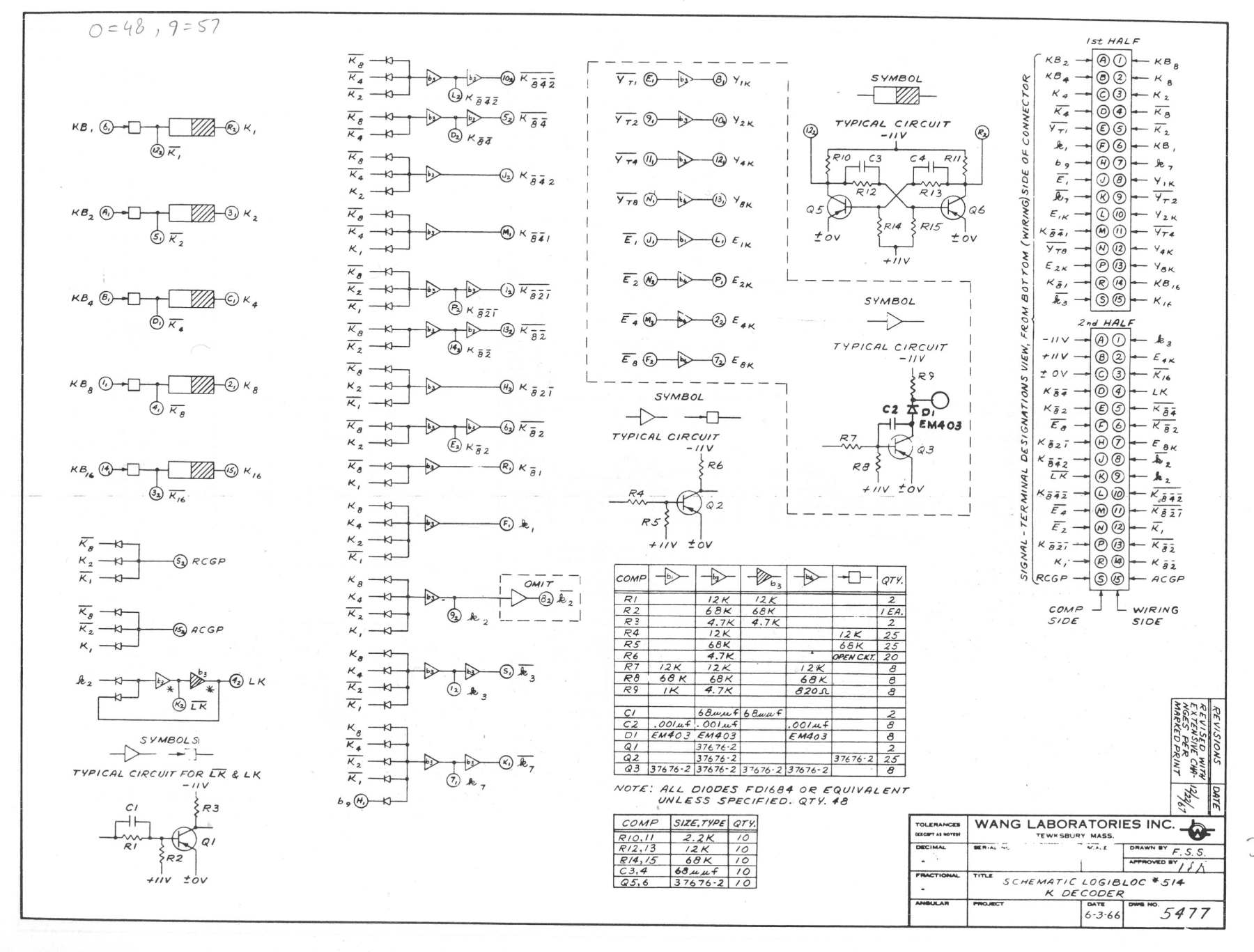

514 Keyboard Latch & Decode [Circuit]

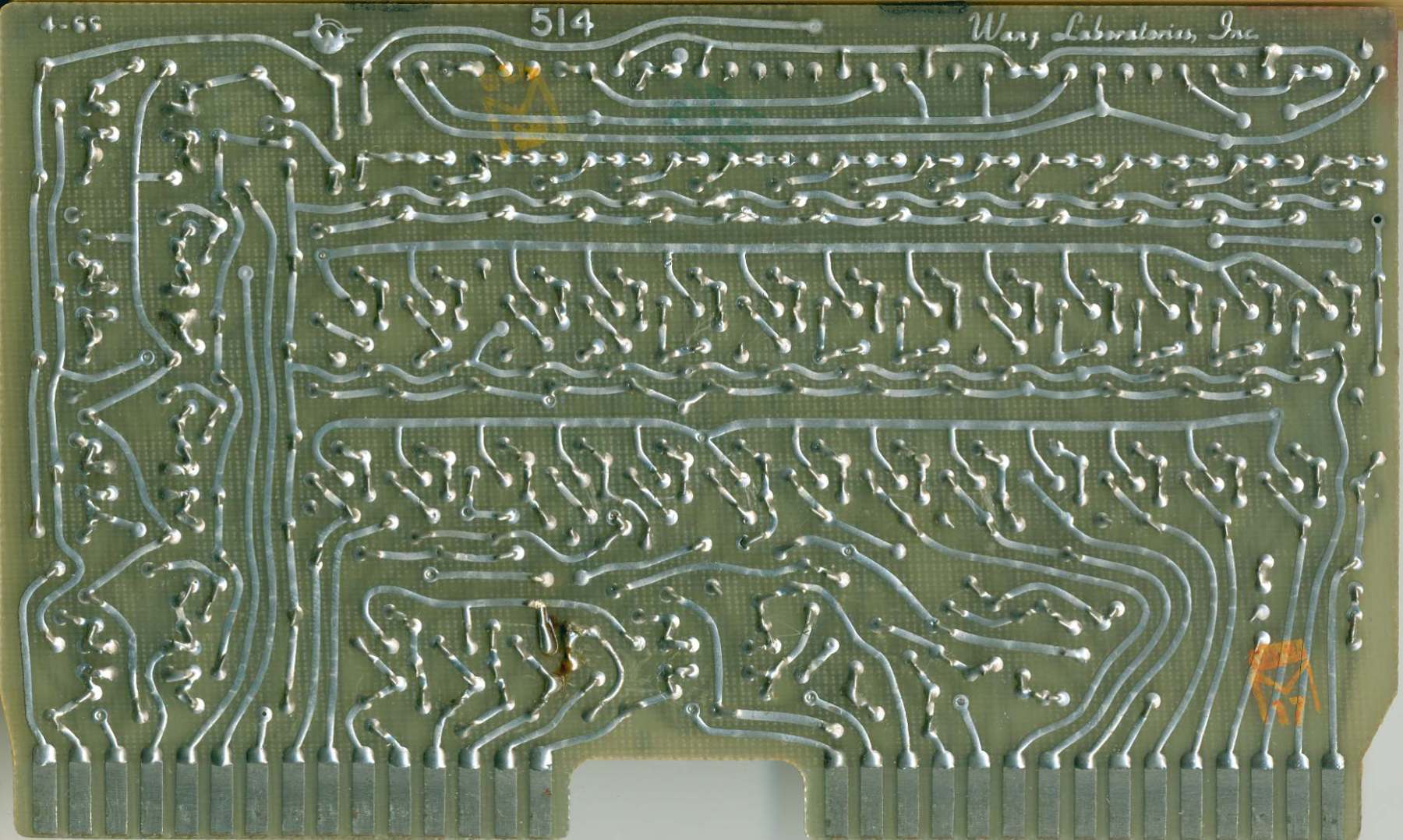

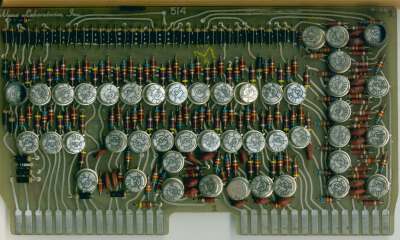

Wang 360E Calculator Circuit Board 514 Wang 360E Calculator Circuit Board 514

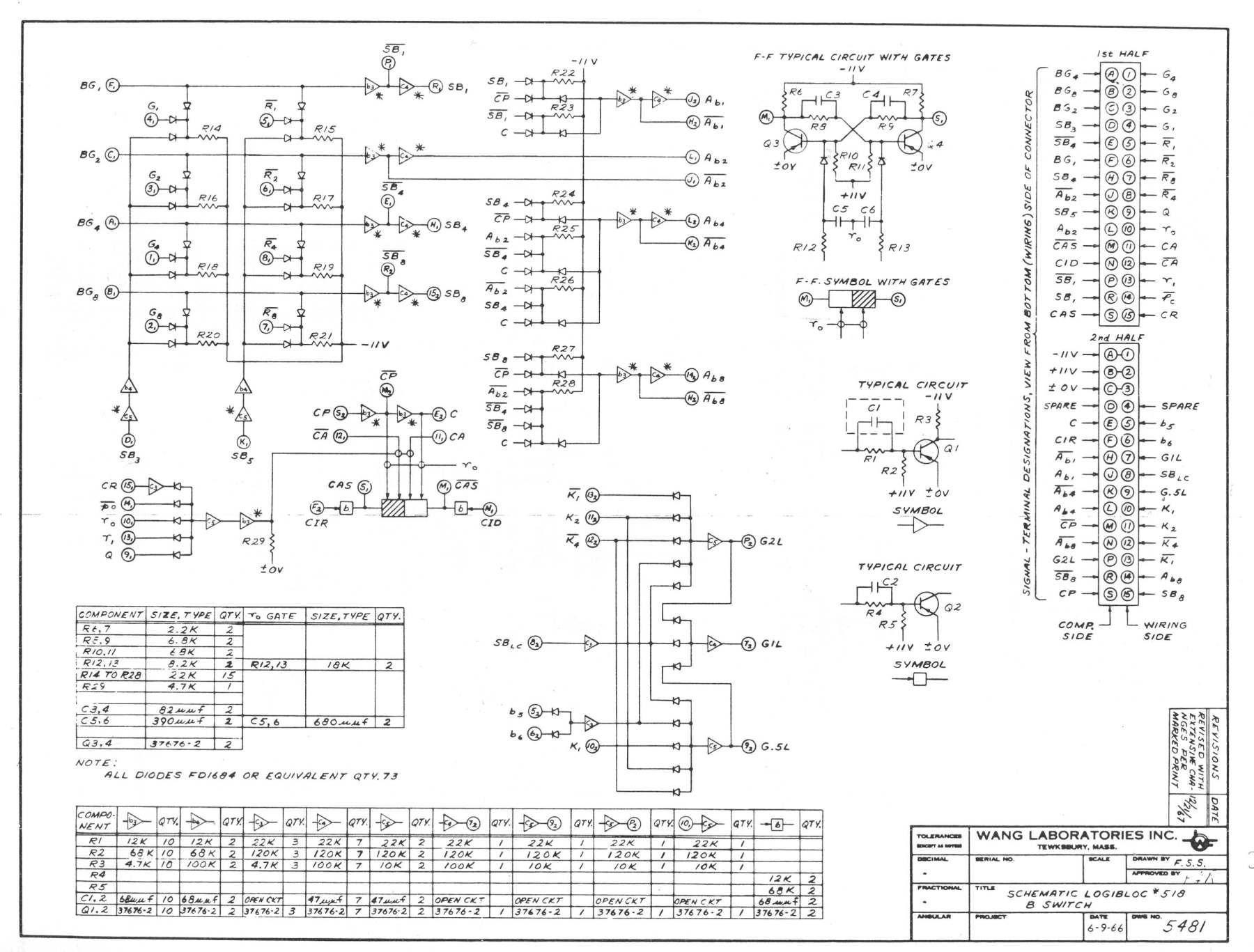

518 B Switch [Circuit]

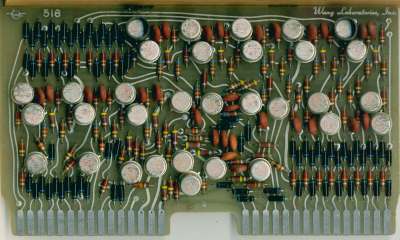

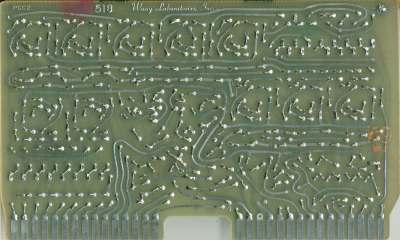

Wang 360E Calculator Circuit Board 518 Wang 360E Calculator Circuit Board 518

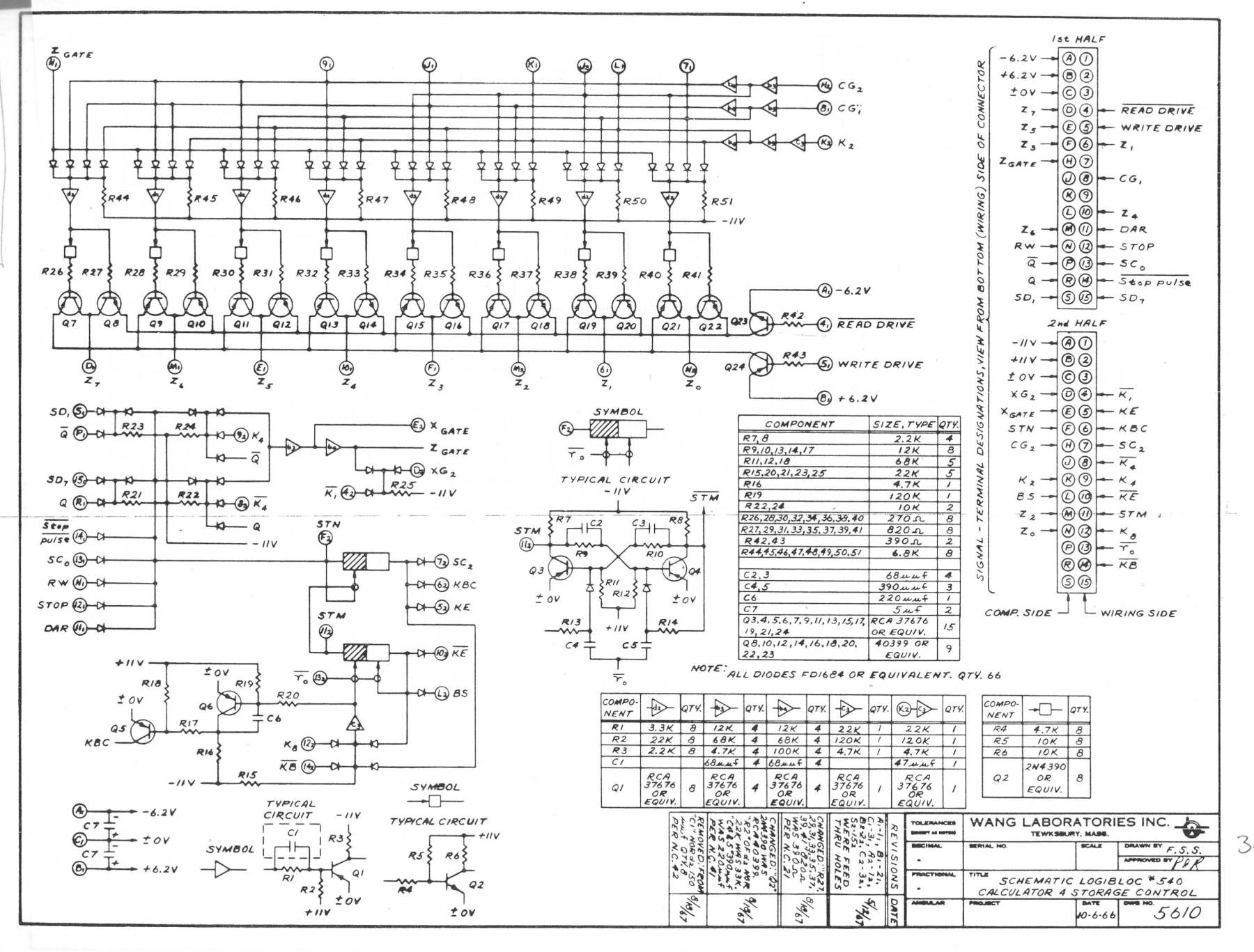

540 Memory Register Control [Circuit]

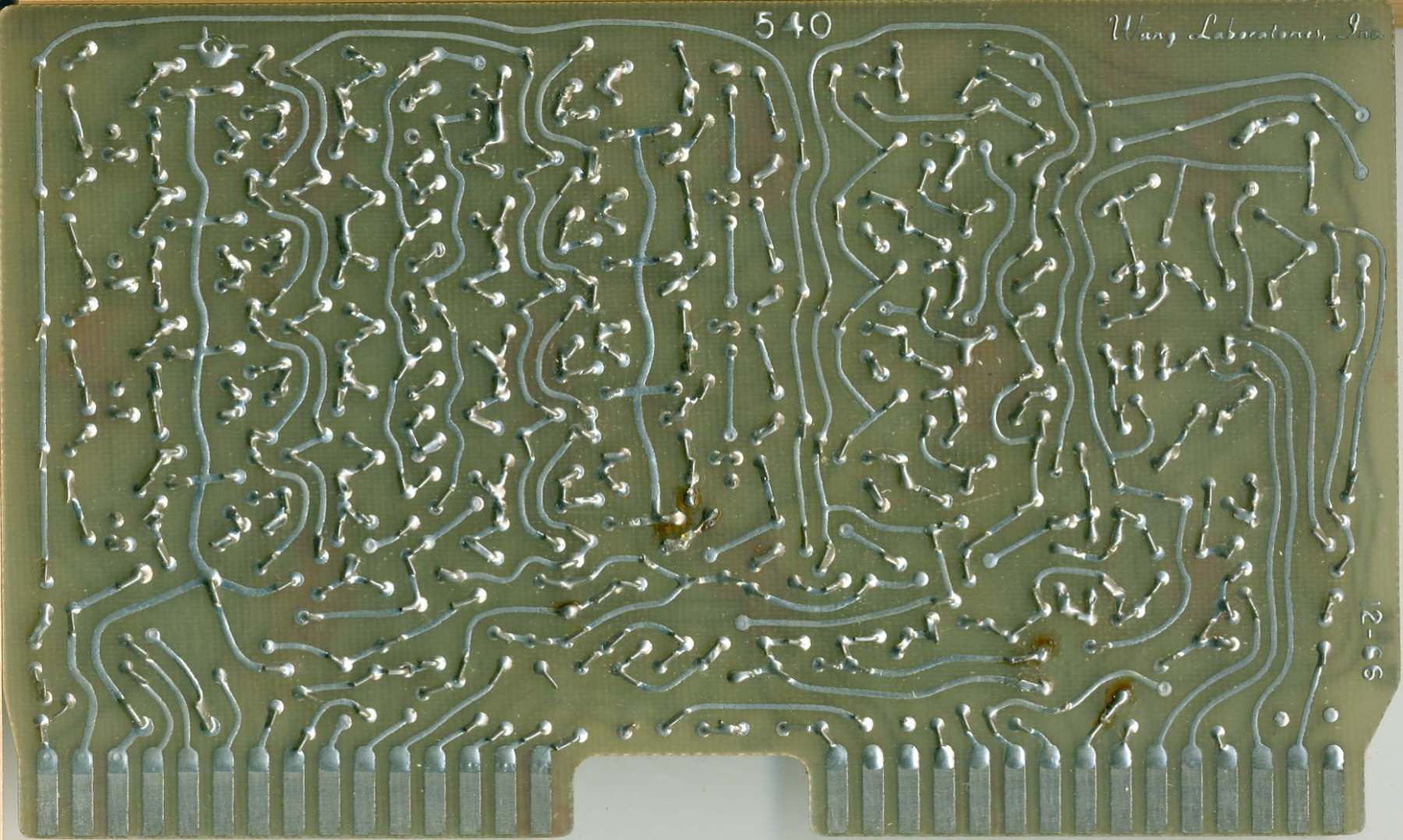

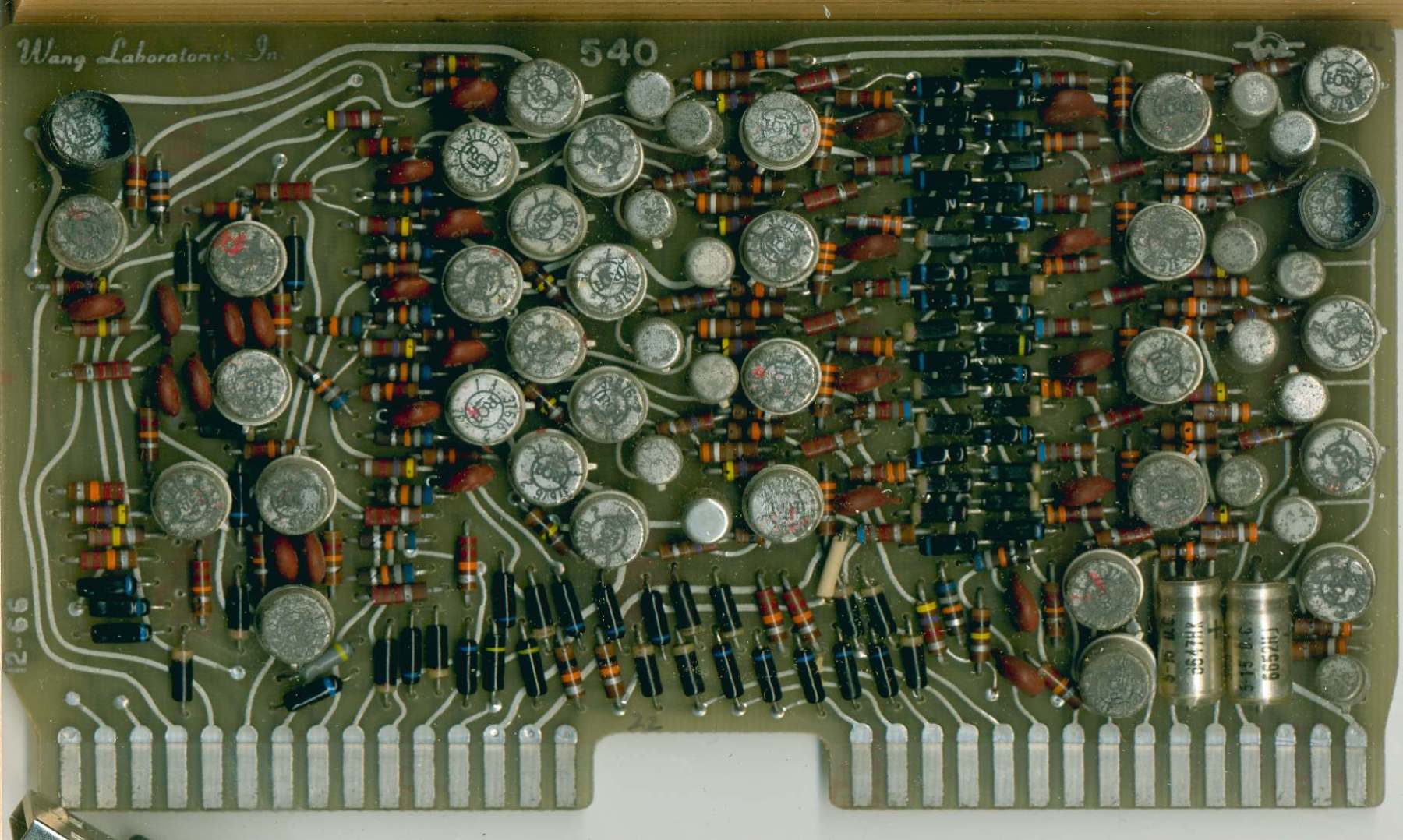

Wang 360E Calculator Circuit Board 540 Wang 360E Calculator Circuit Board 540

502 Log Generator

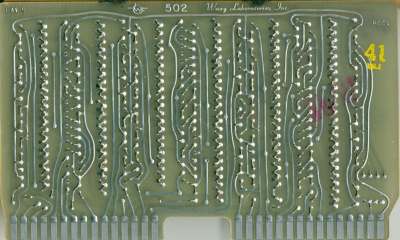

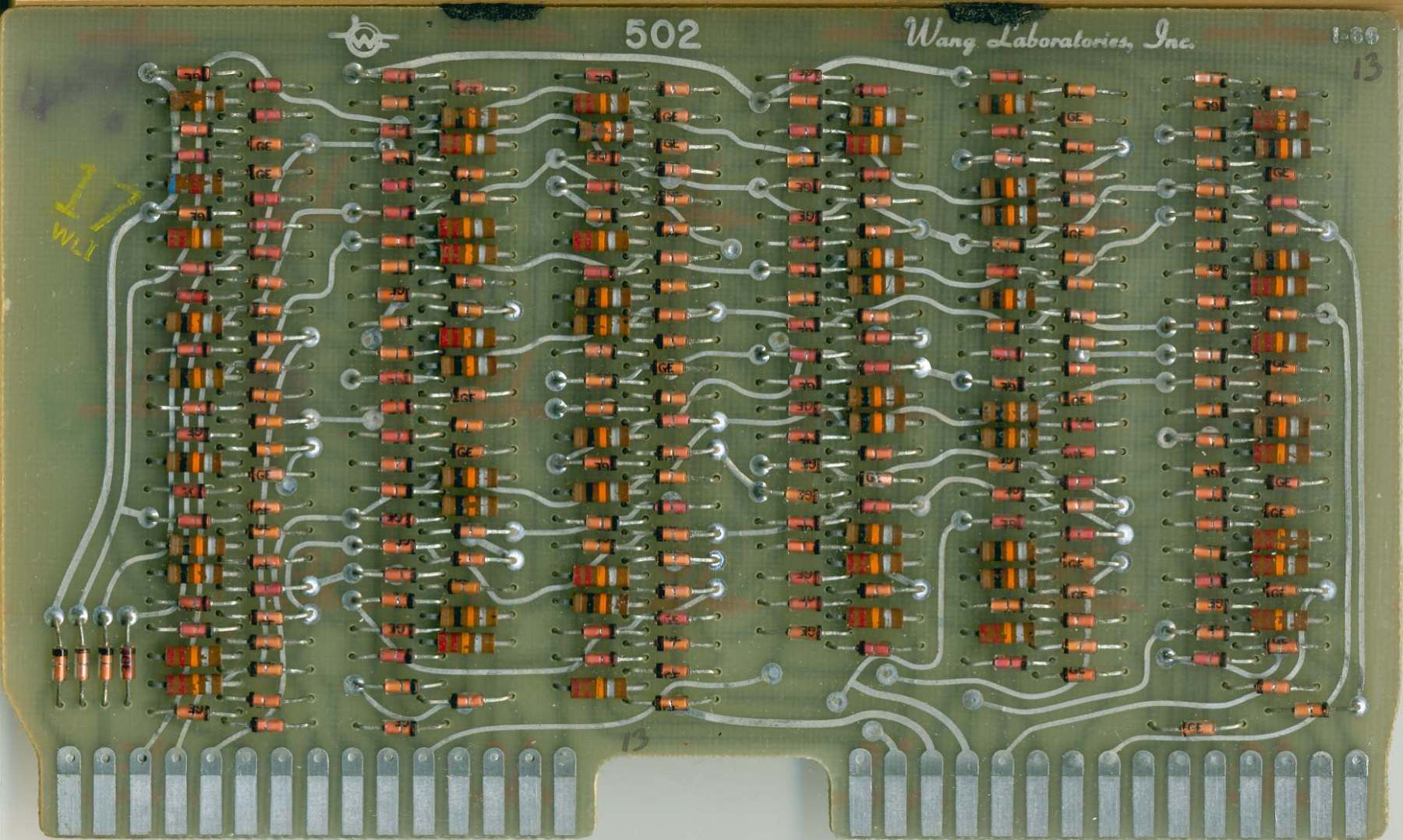

Wang 360E Calculator Circuit Board 502 Wang 360E Calculator Circuit Board 502

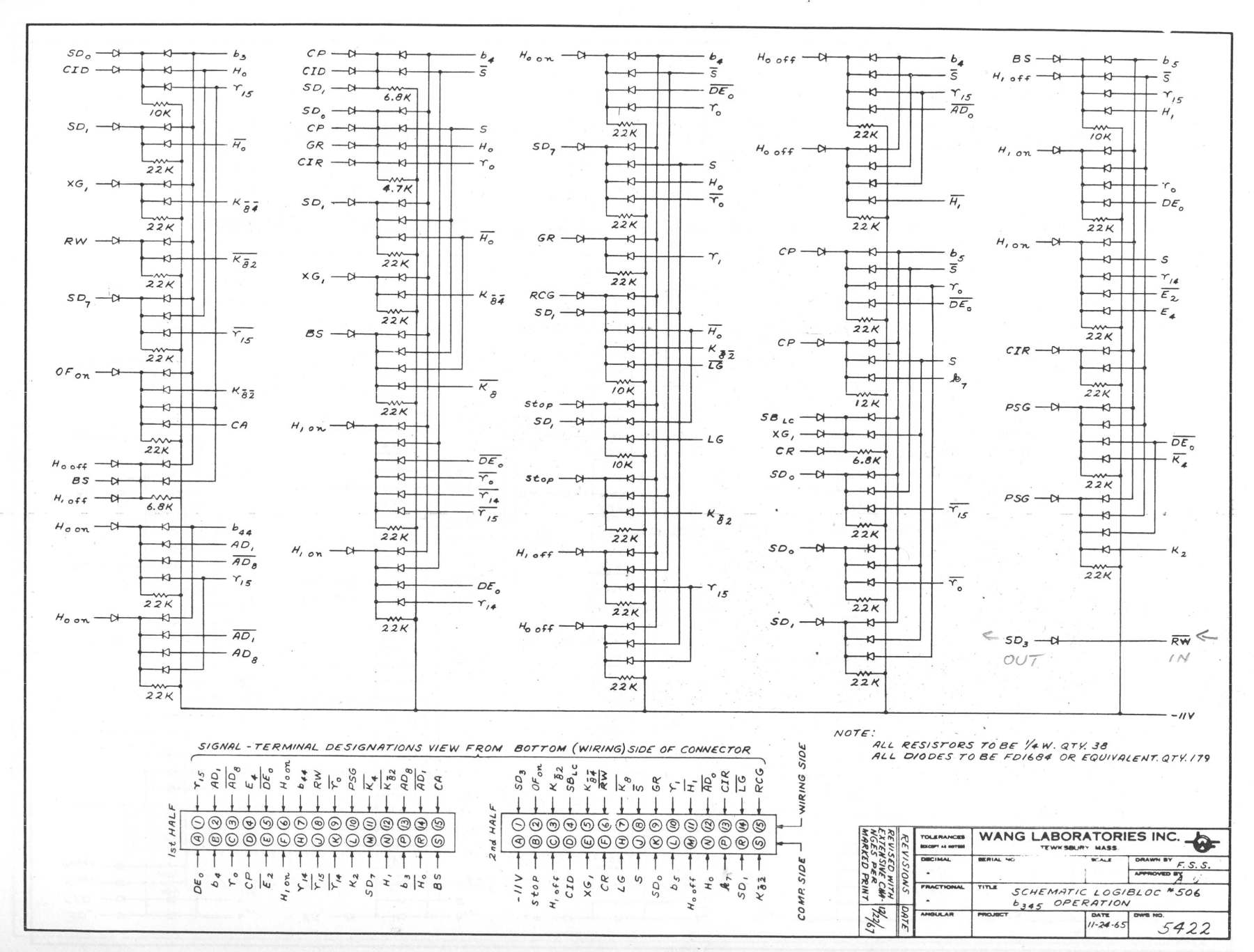

506 b3/4/5 States [Circuit]

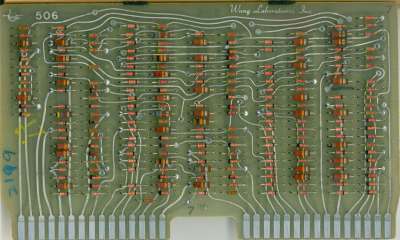

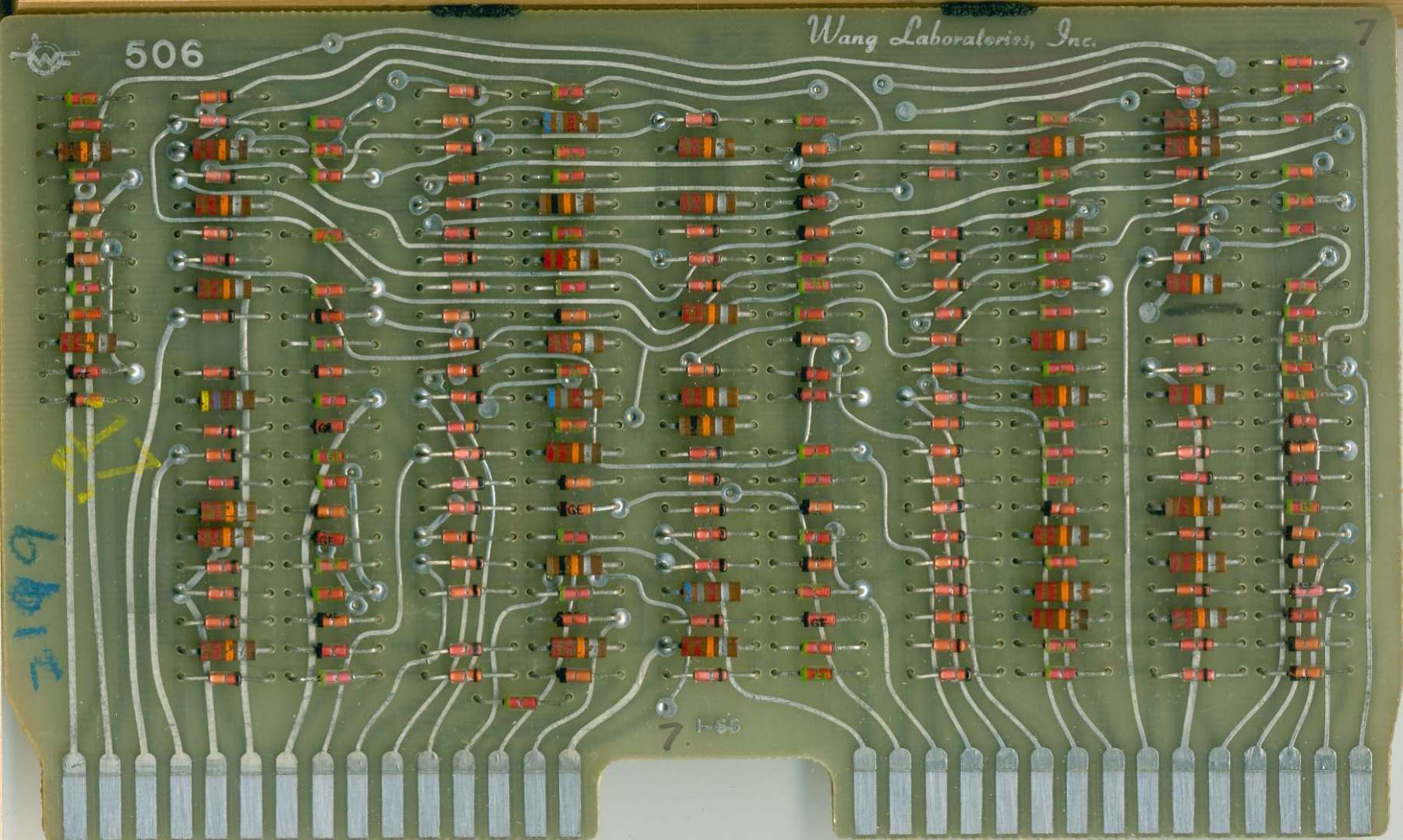

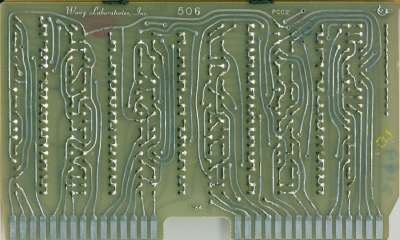

Wang 360E Calculator Circuit Board 506 Wang 360E Calculator Circuit Board 506

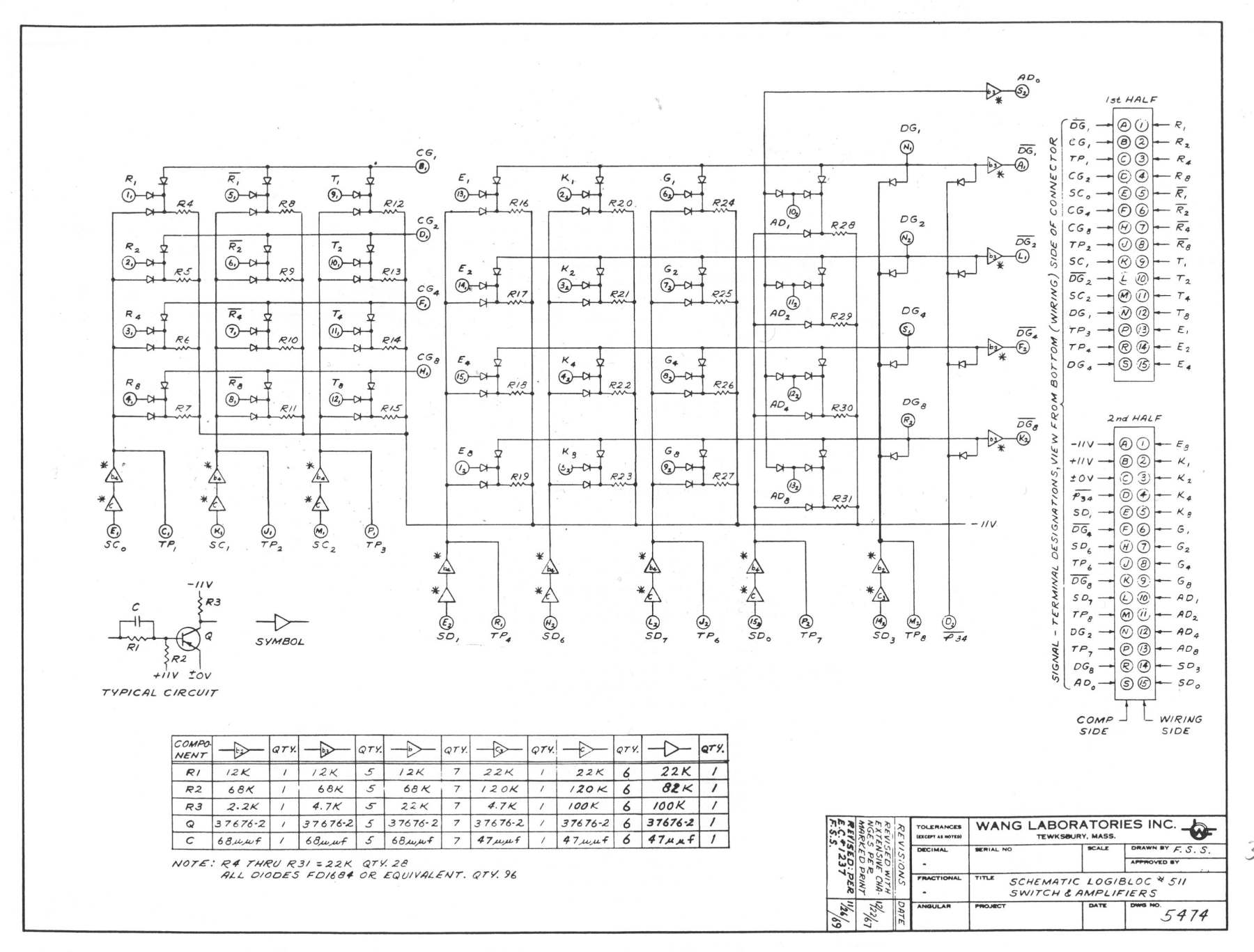

511 Buffer & Data Switch [Circuit]

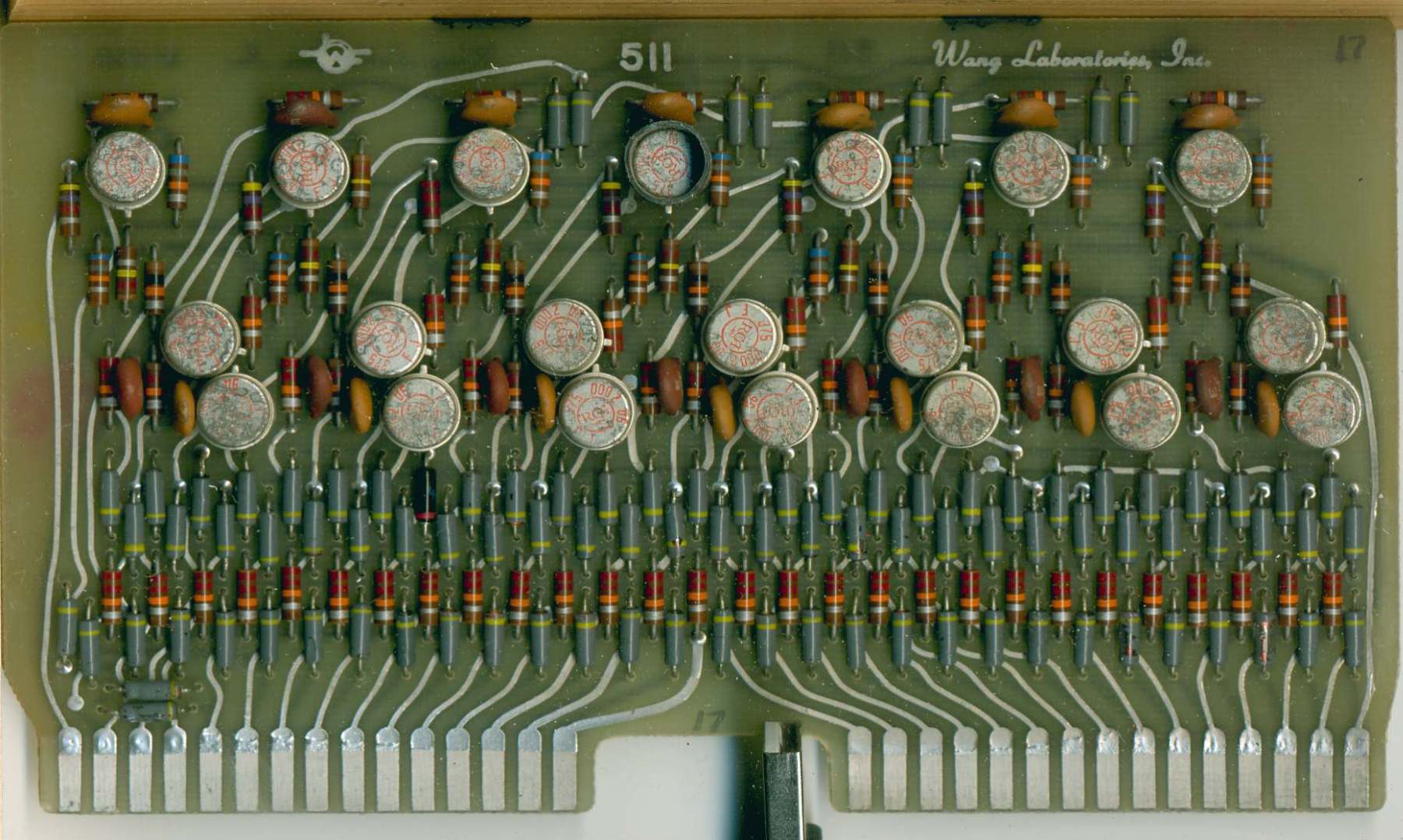

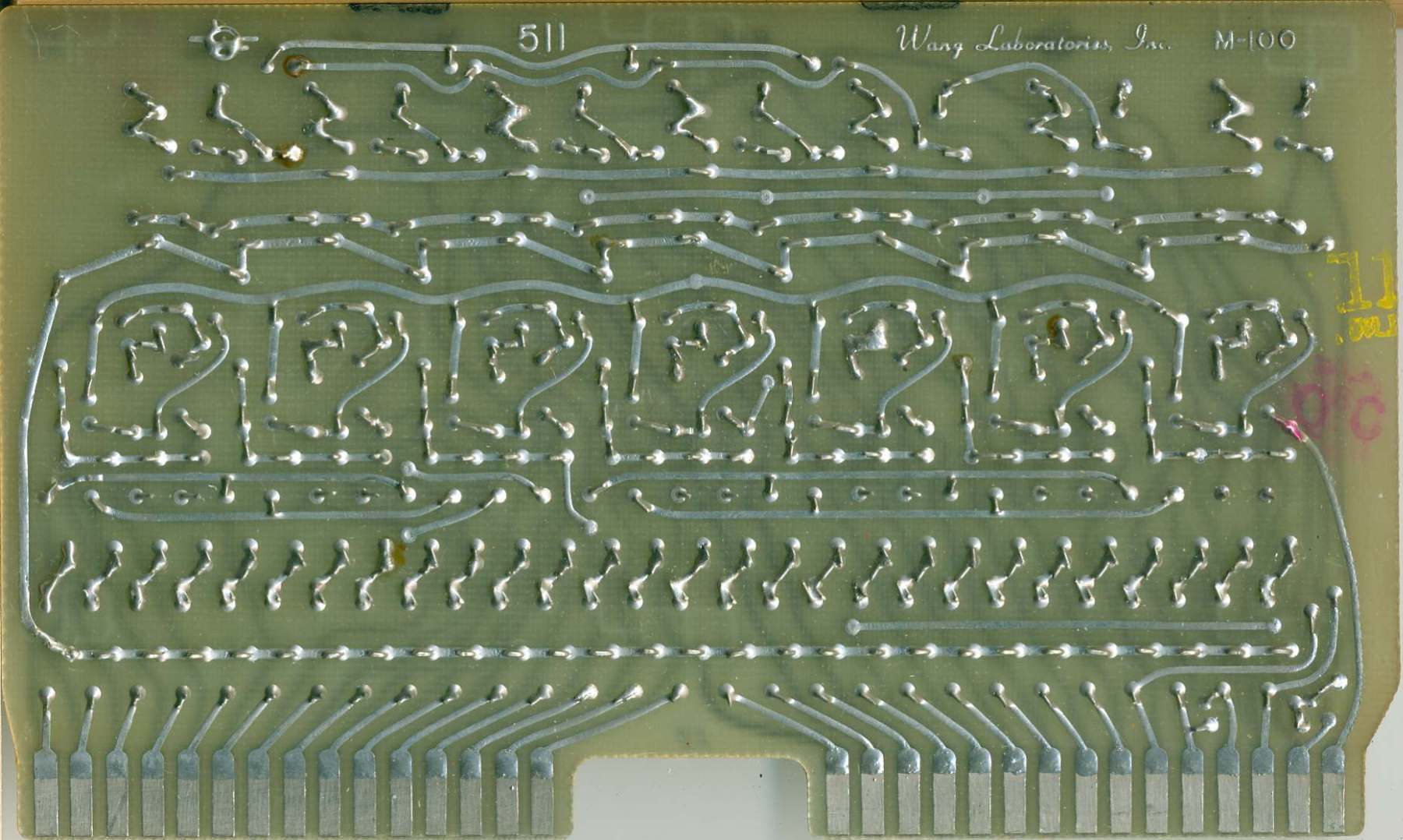

Wang 360E Calculator Circuit Board 511 Wang 360E Calculator Circuit Board 511

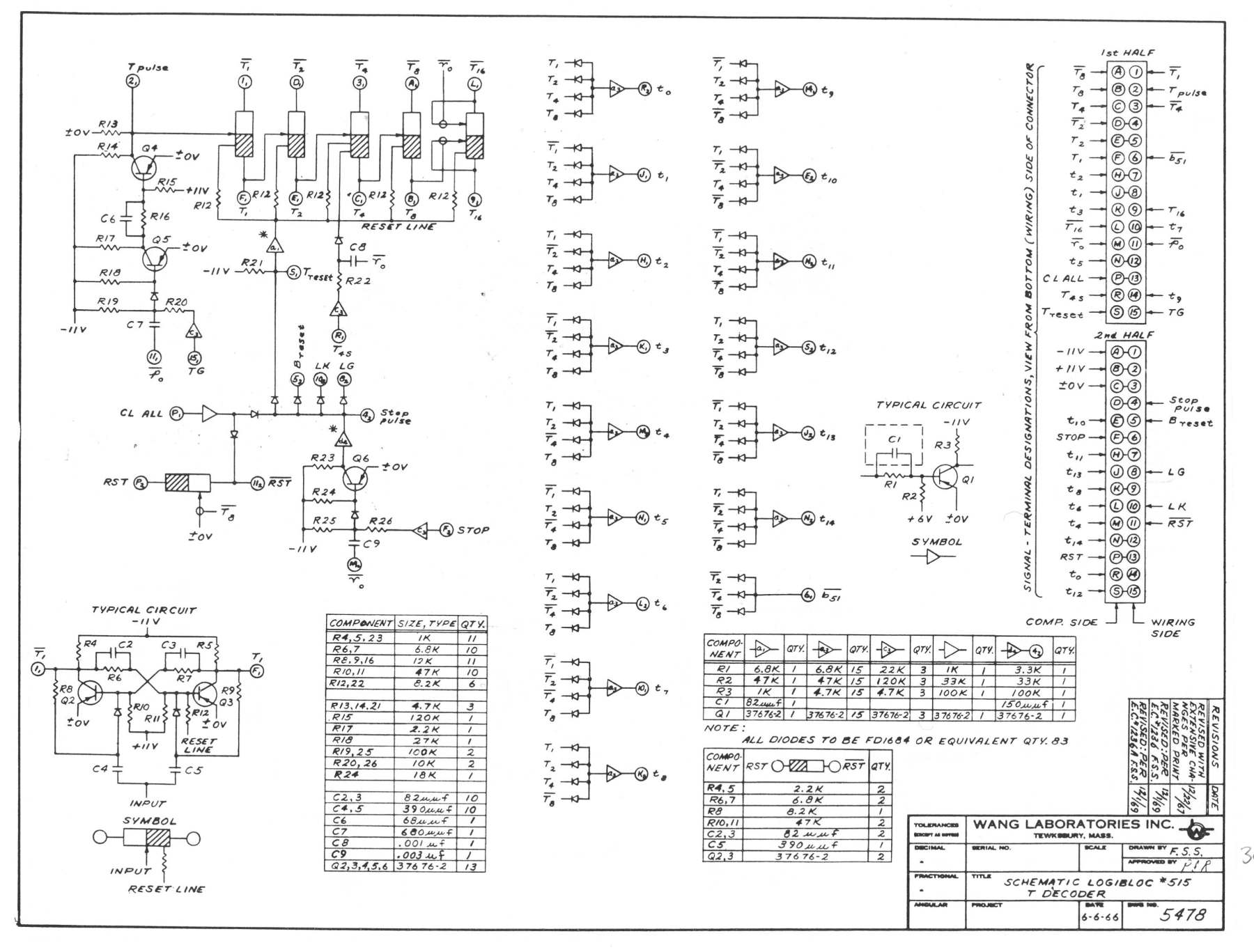

515 T Counter [Circuit]

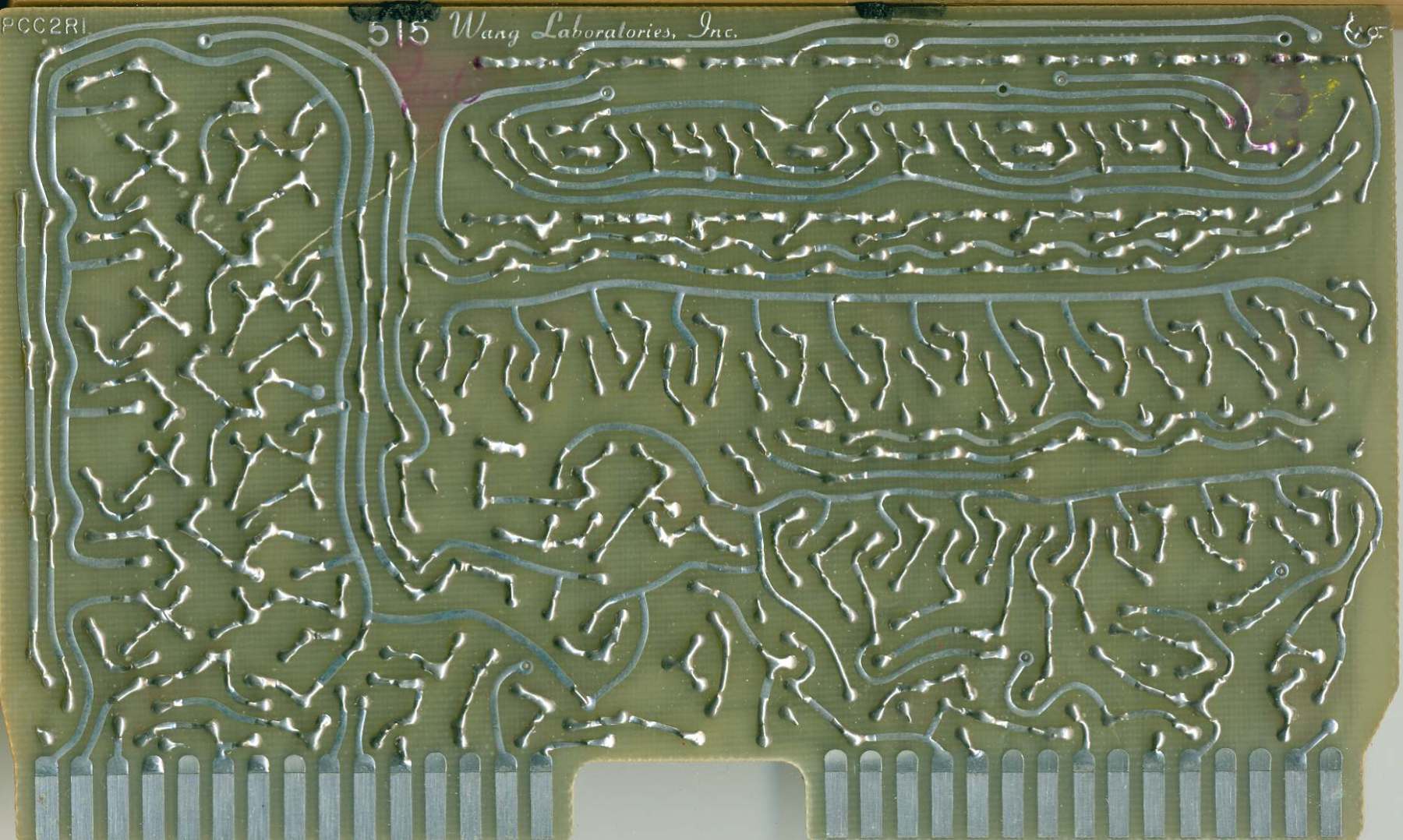

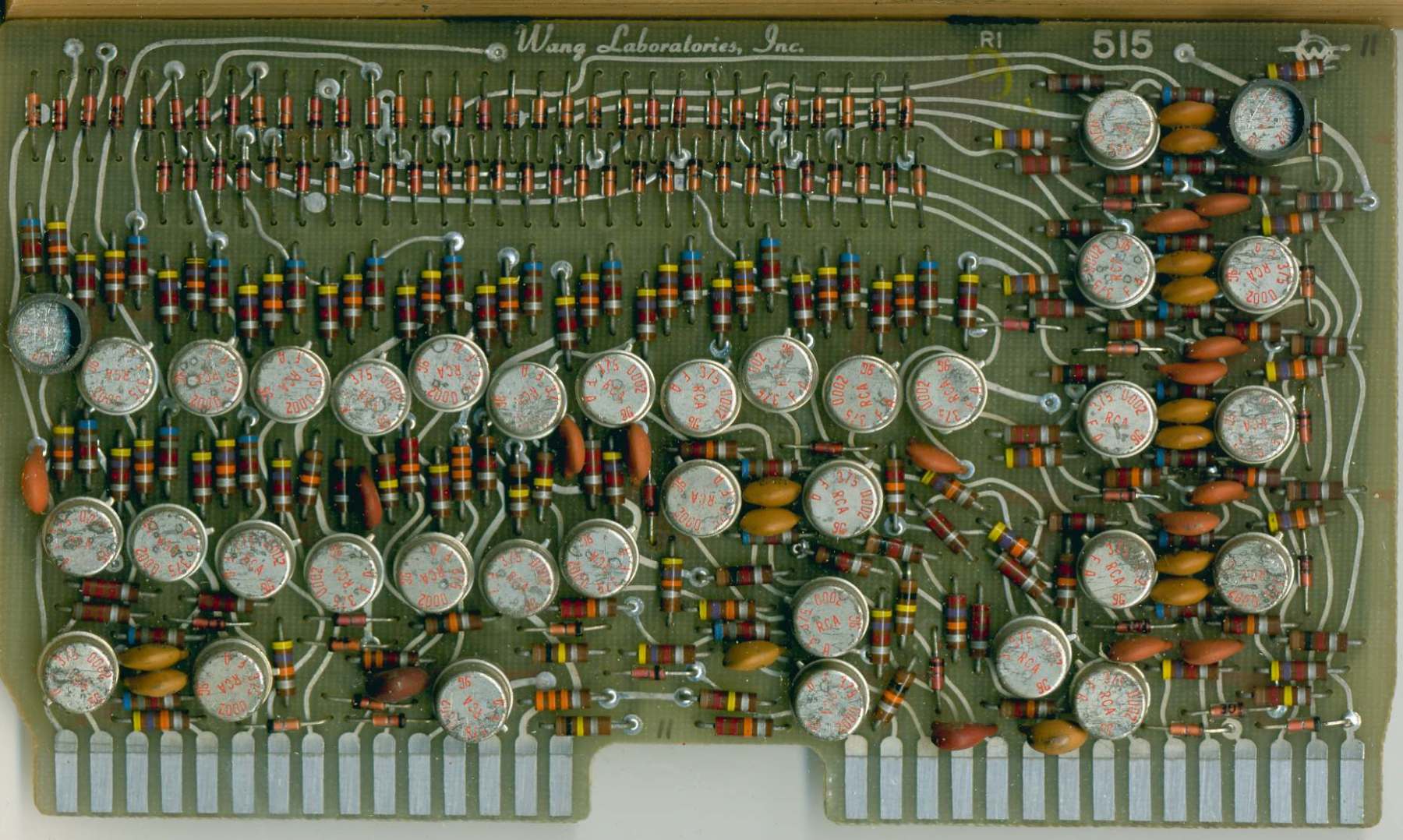

Wang 360E Calculator Circuit Board 515 Wang 360E Calculator Circuit Board 515

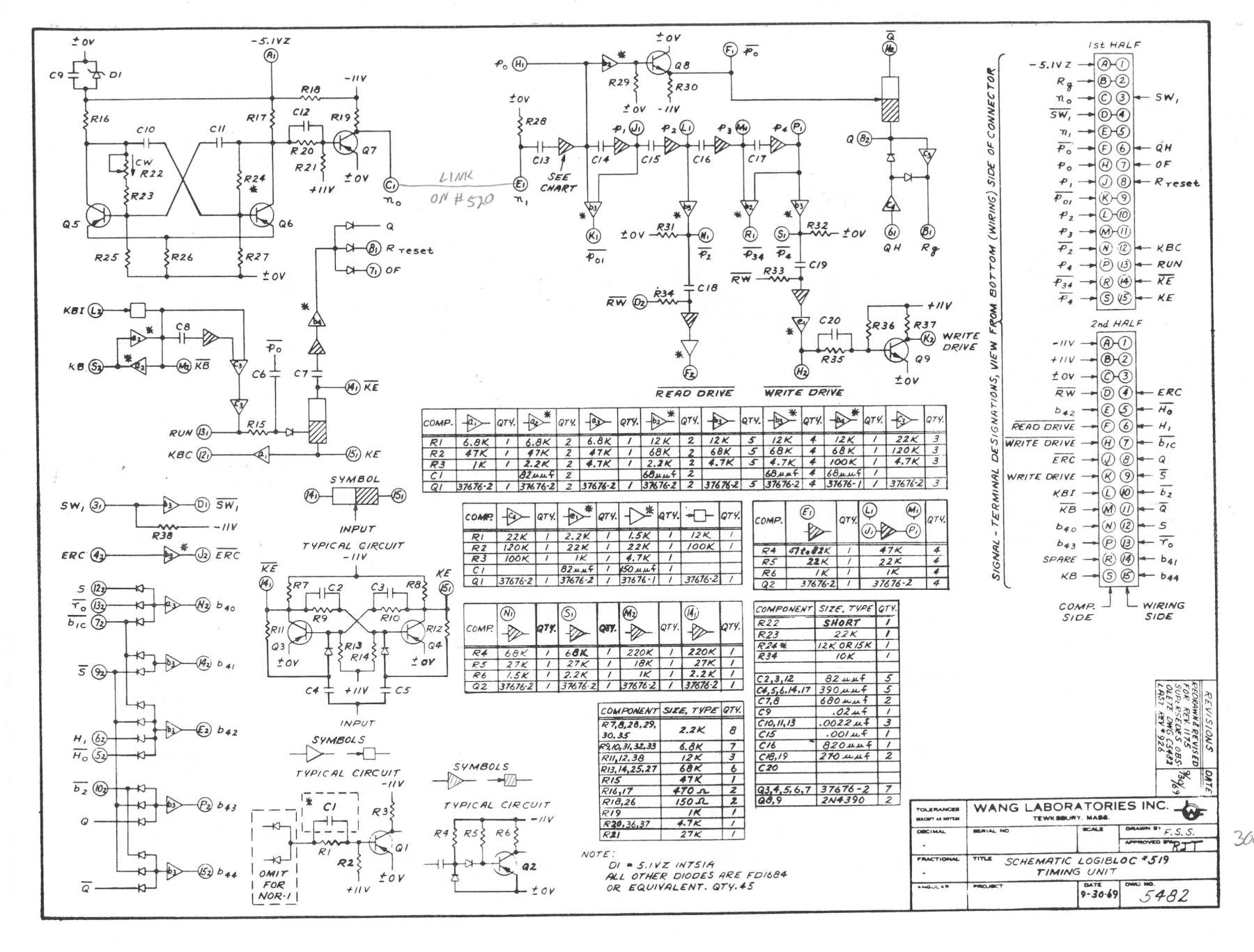

519 Clock & Core Timing [Circuit]

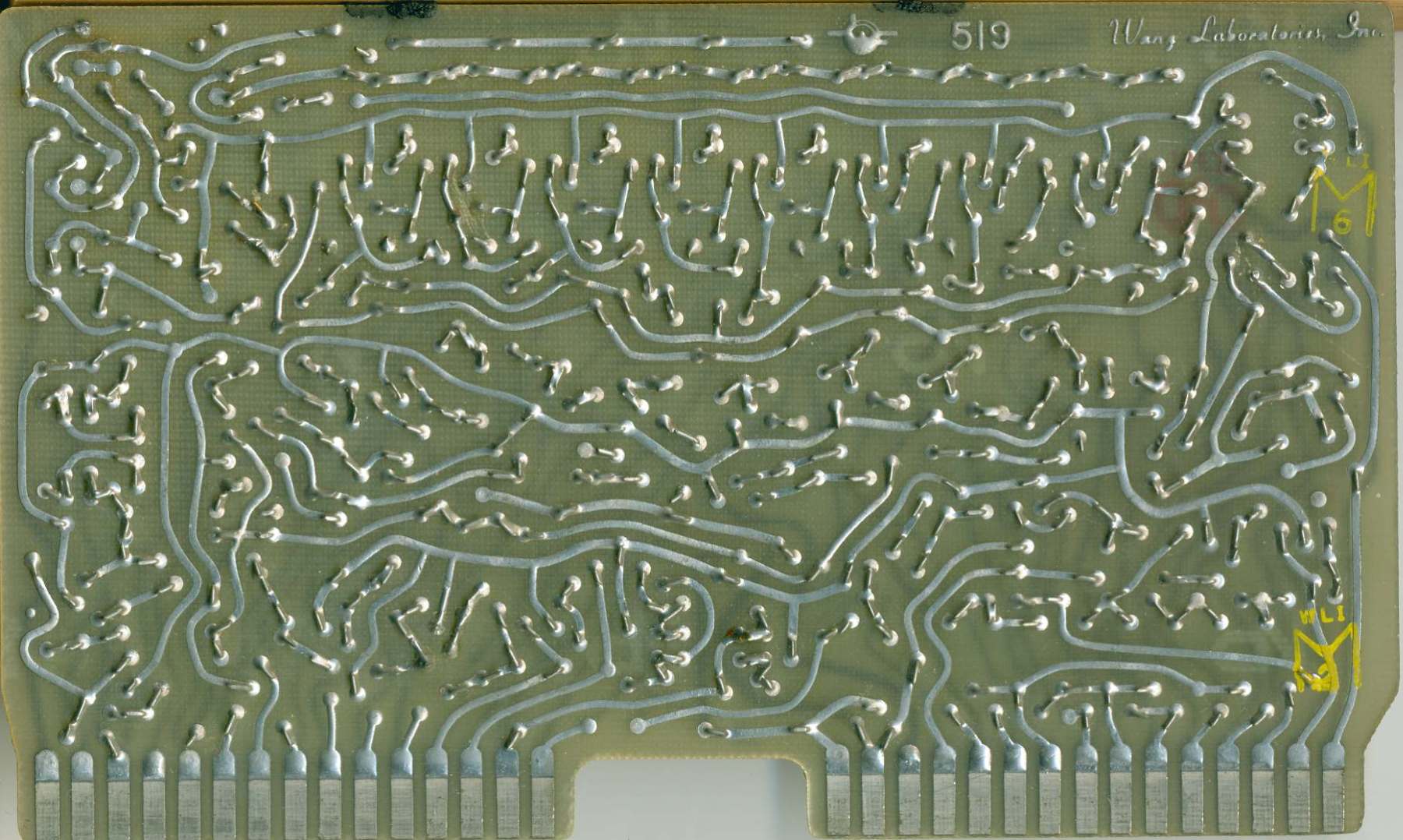

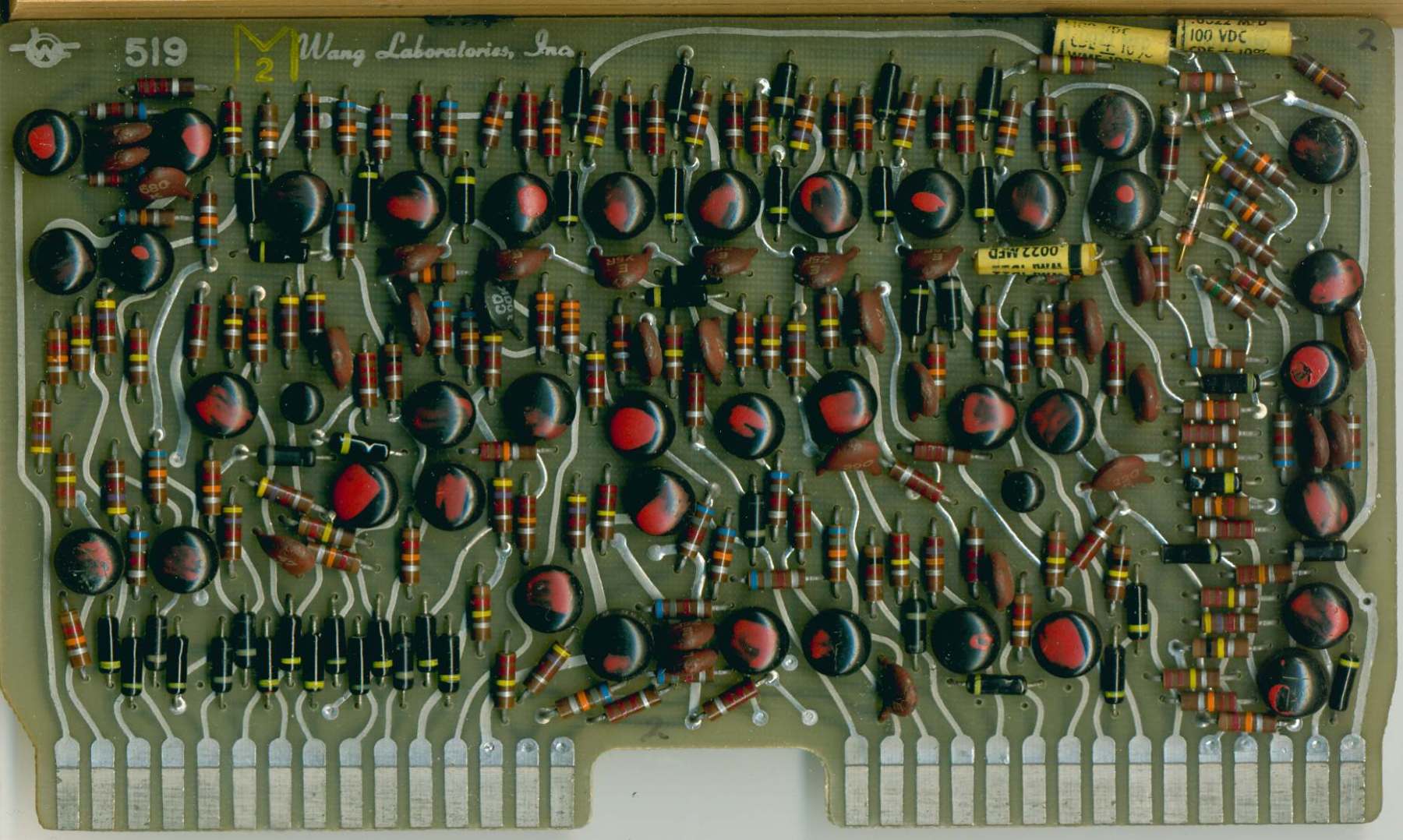

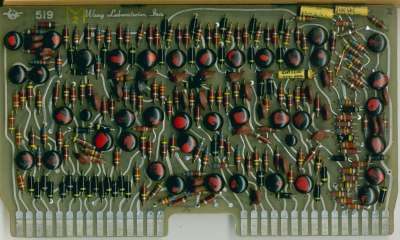

Wang 360E Calculator Circuit Board 519 Wang 360E Calculator Circuit Board 519

503 Log Generator

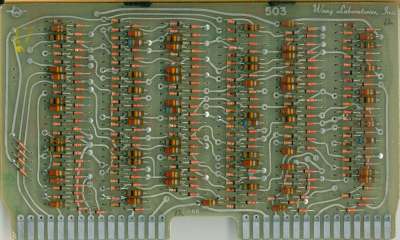

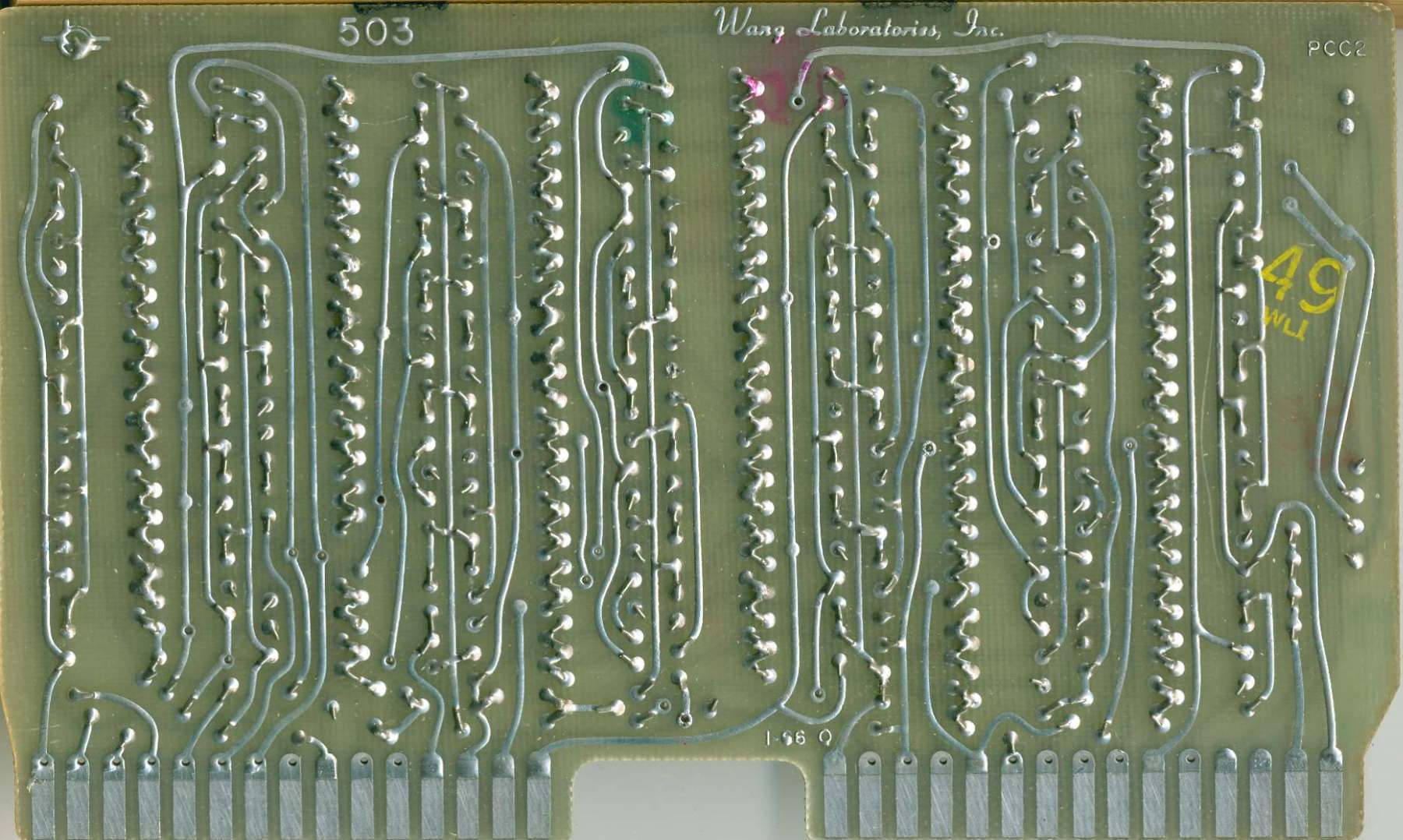

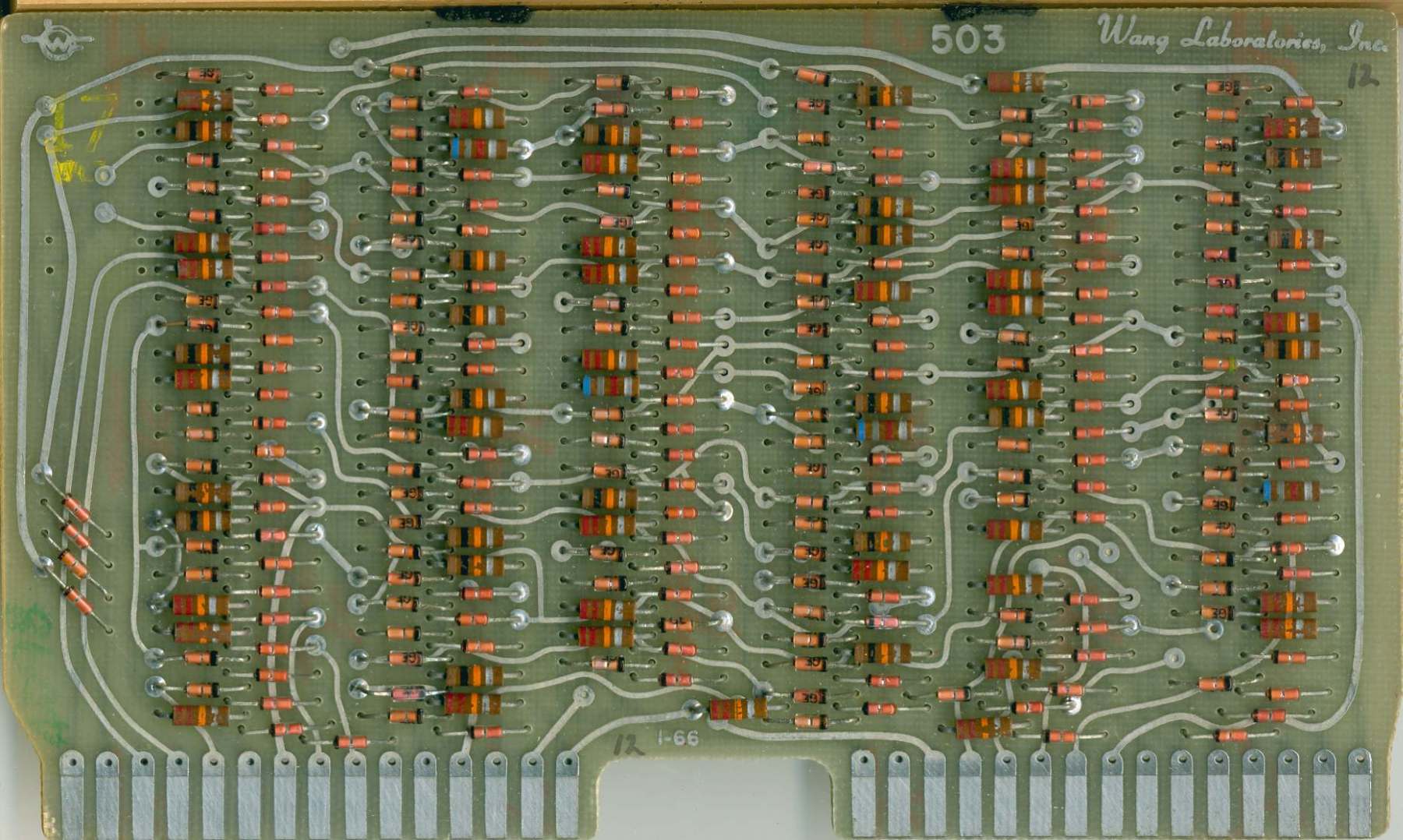

Wang 360E Calculator Circuit Board 503 Wang 360E Calculator Circuit Board 503

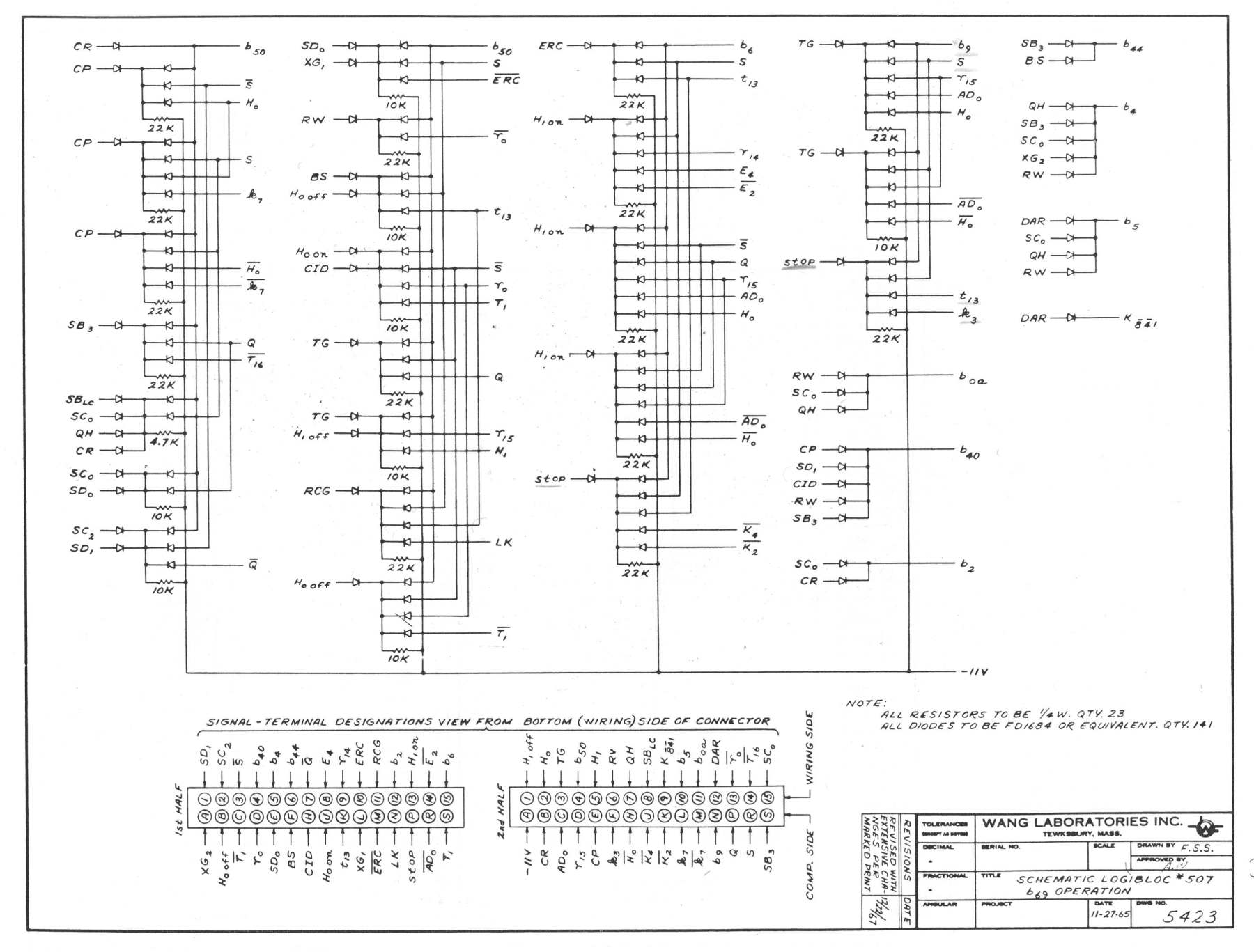

507 b6/9 States [Circuit]

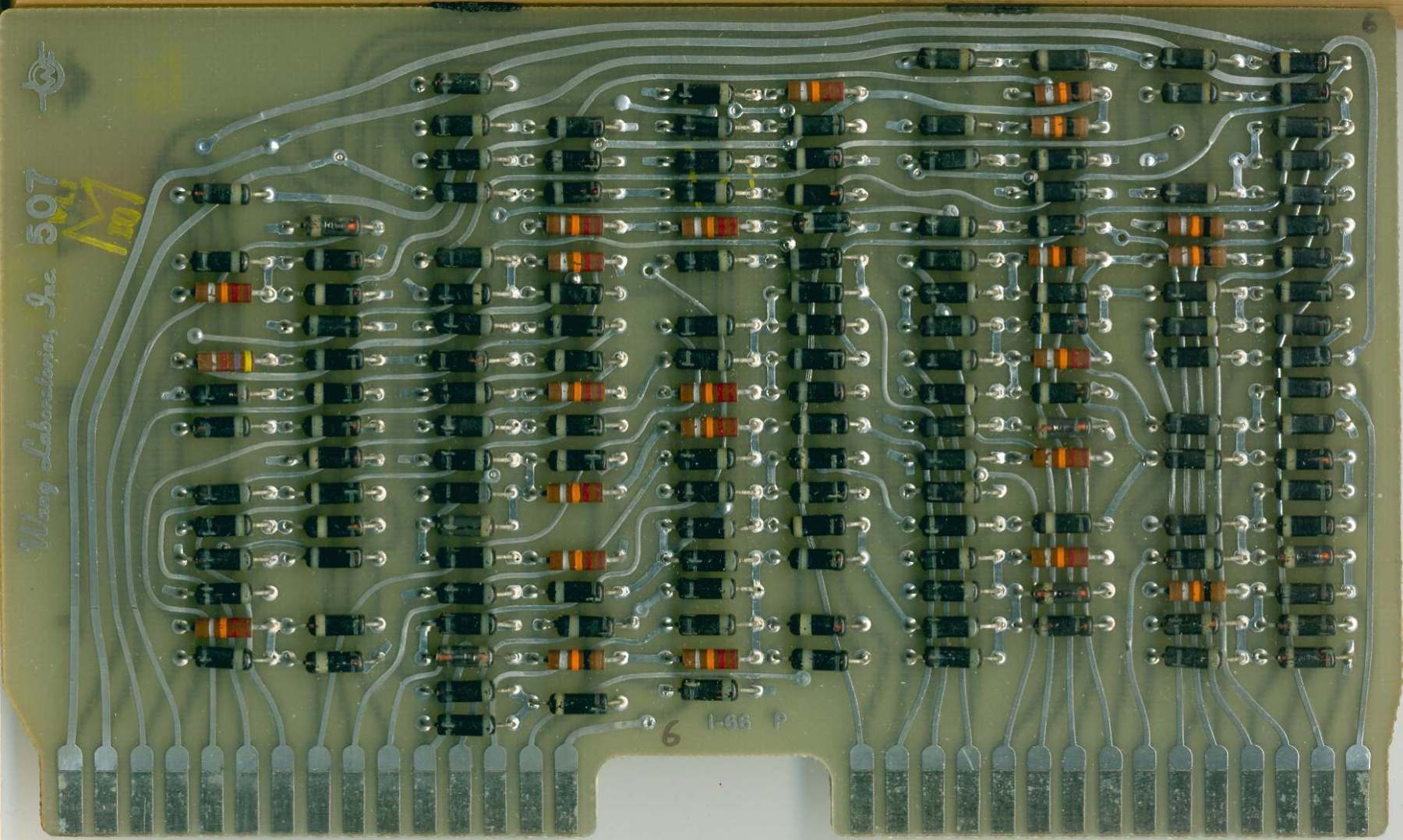

Wang 360E Calculator Circuit Board 507 Wang 360E Calculator Circuit Board 507

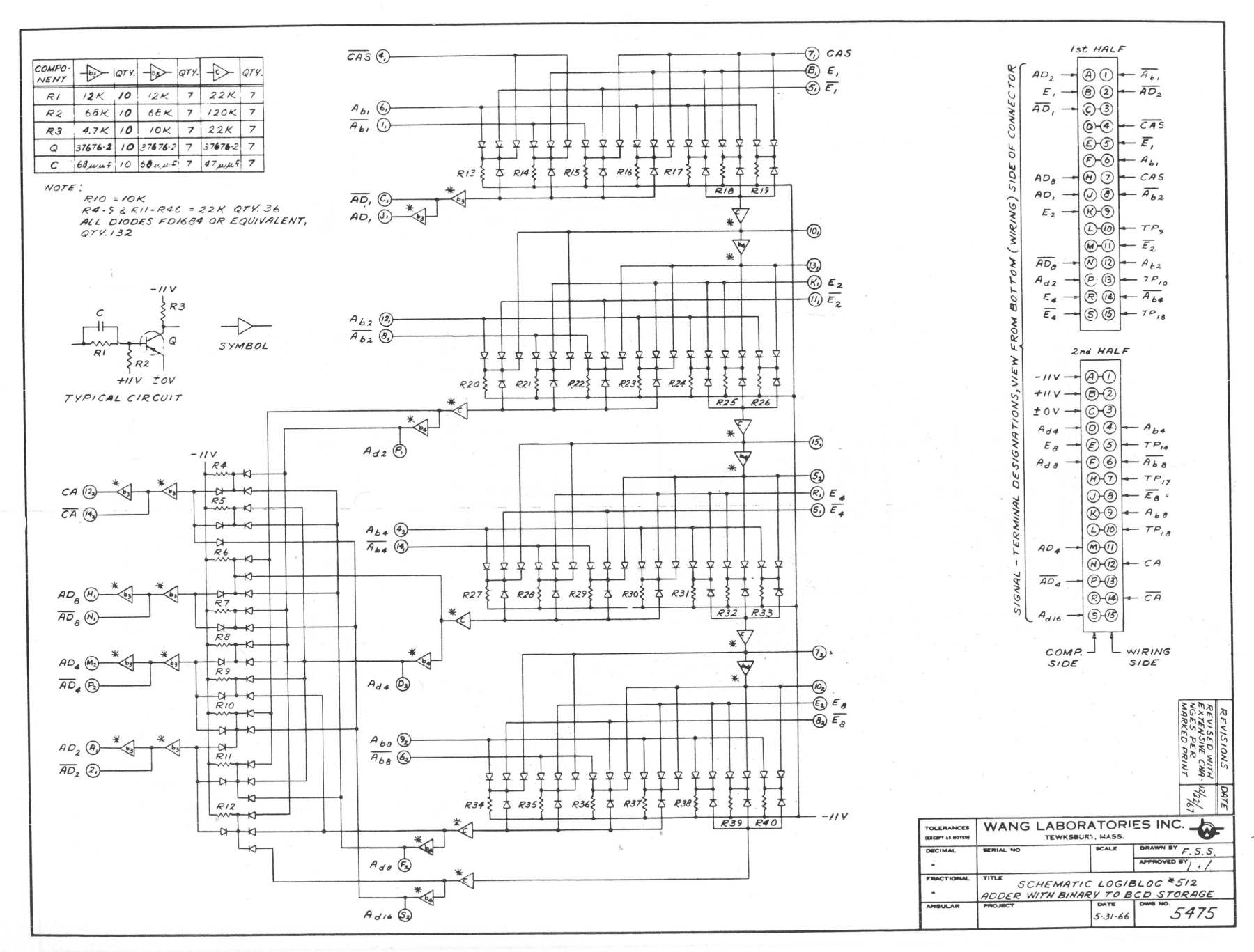

512 BCD Adder [Circuit]

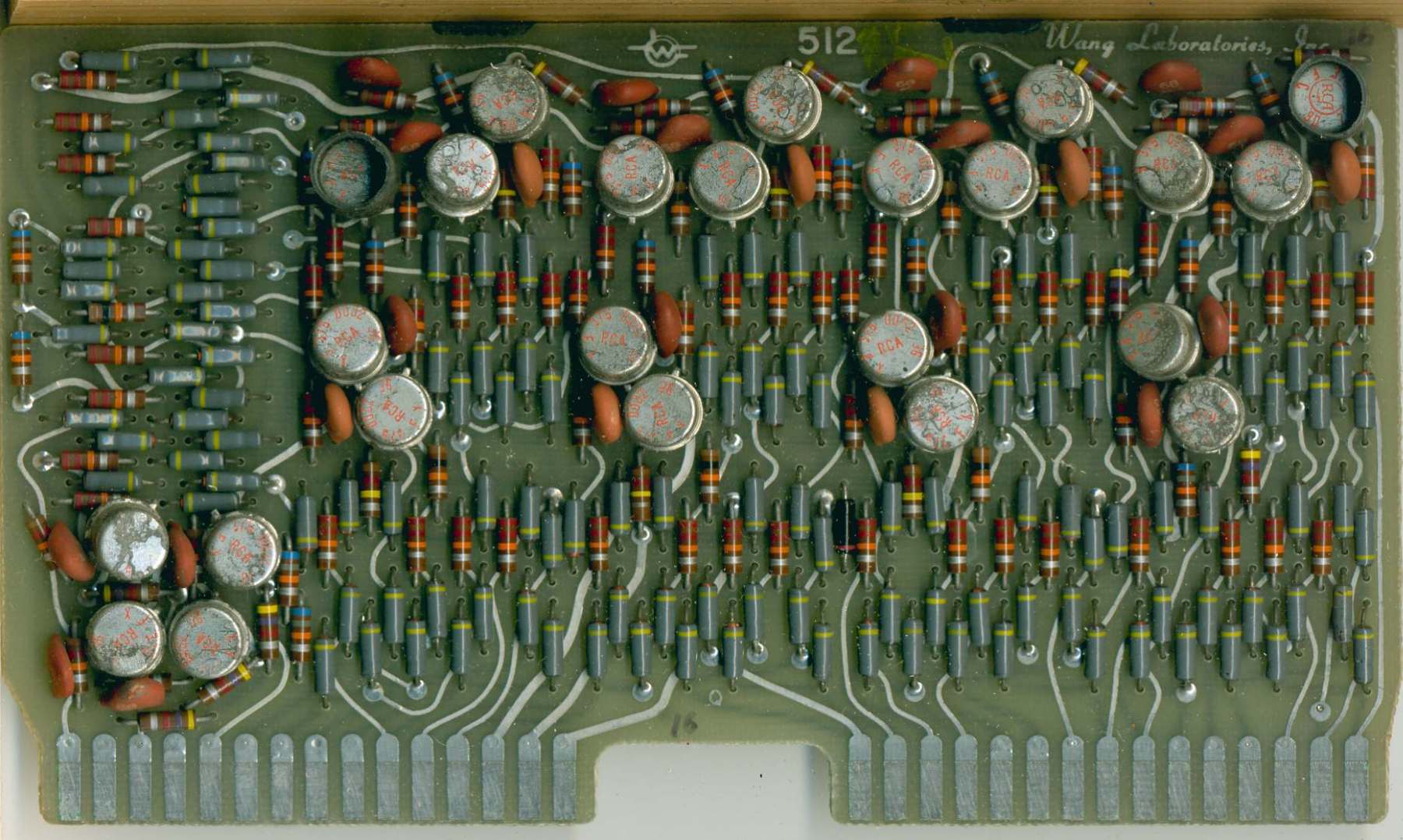

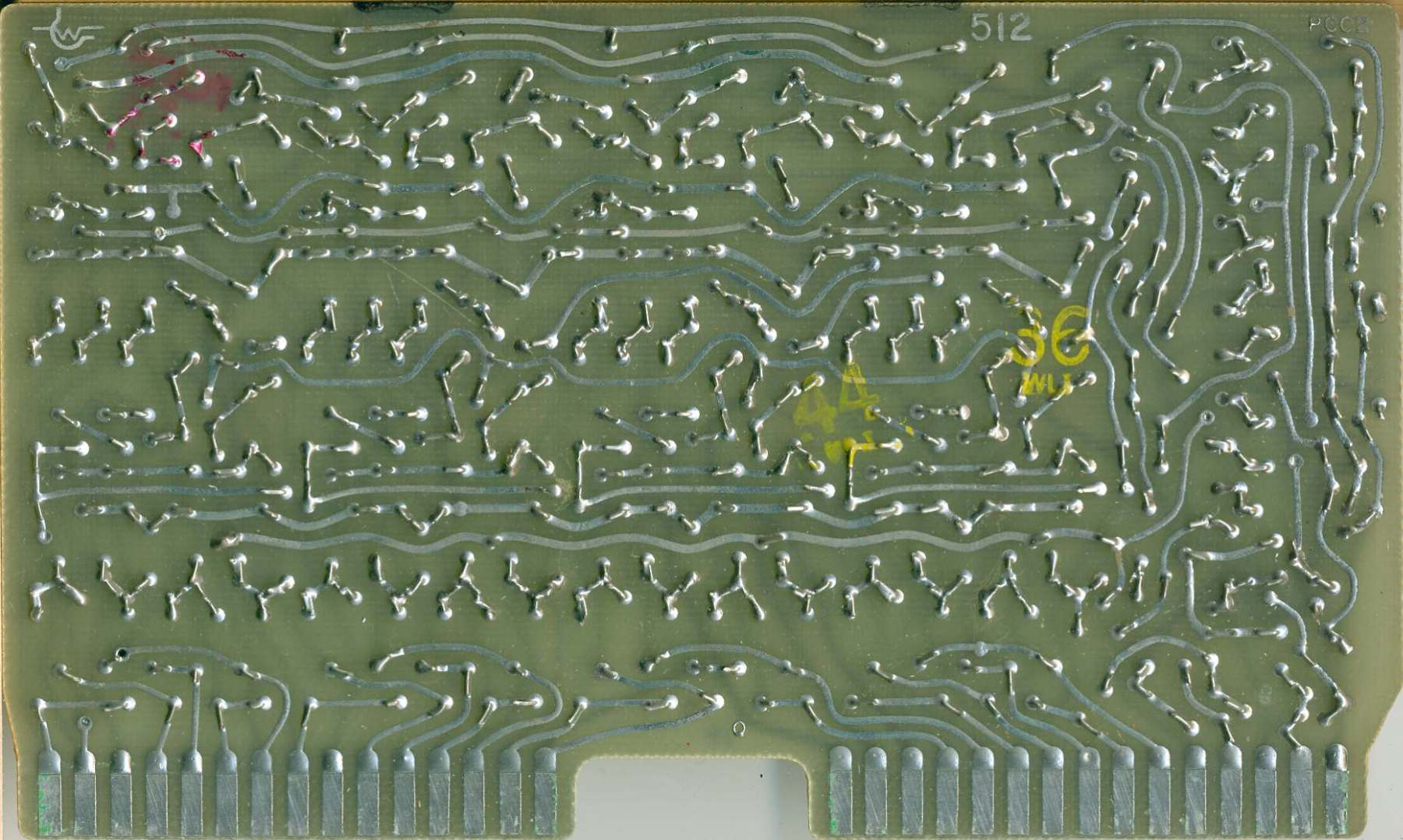

Wang 360E Calculator Circuit Board 512 Wang 360E Calculator Circuit Board 512

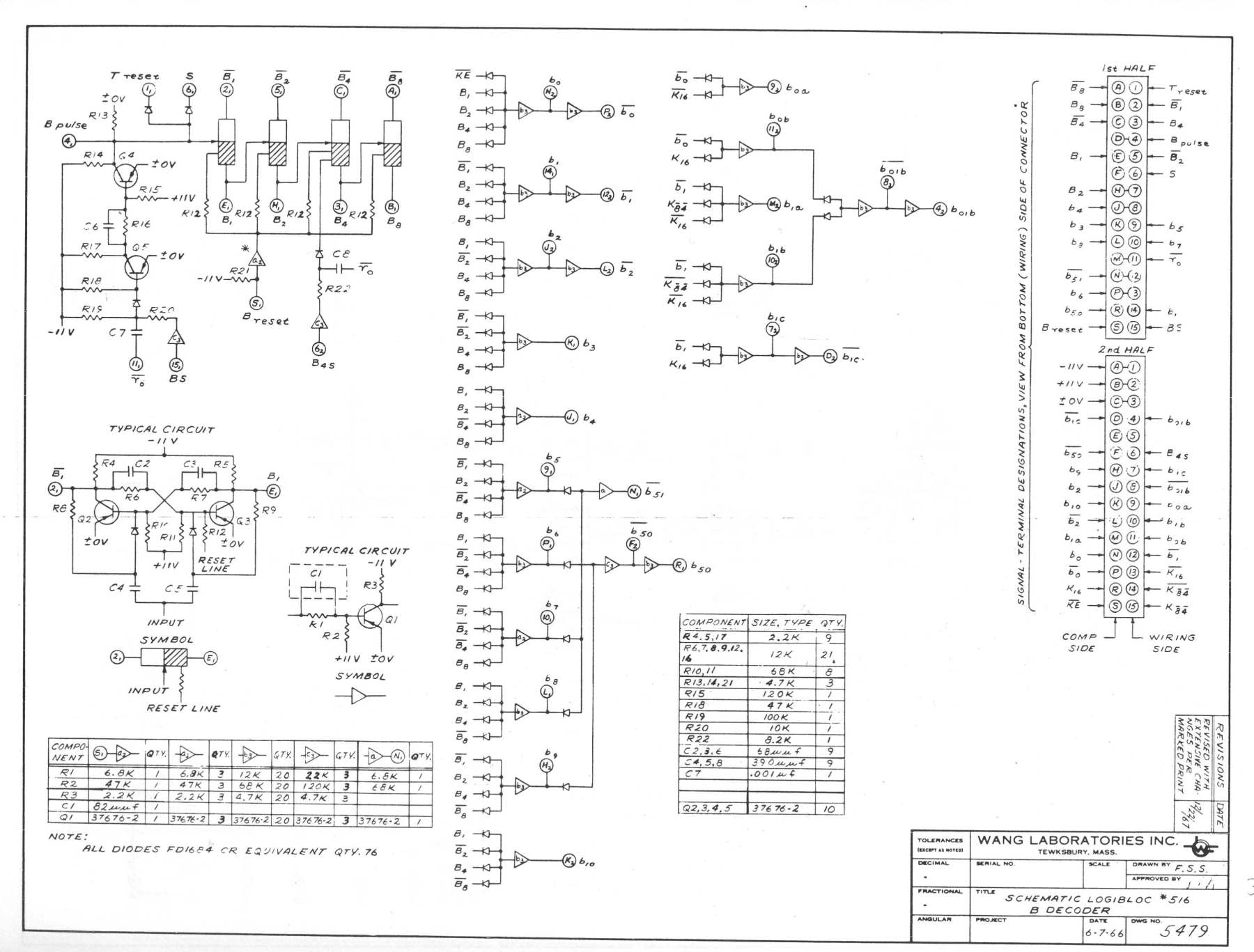

516 B Counter [Circuit]

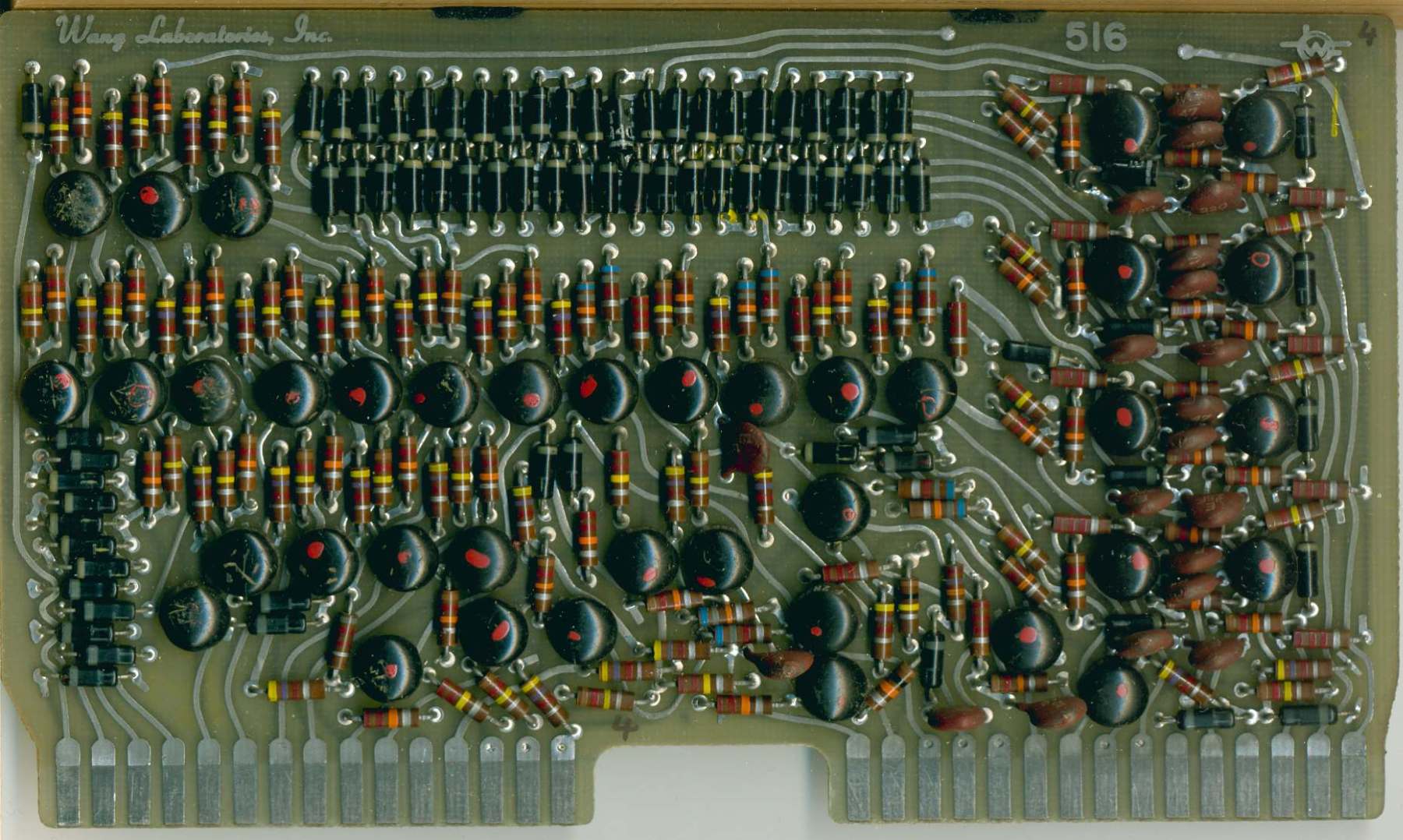

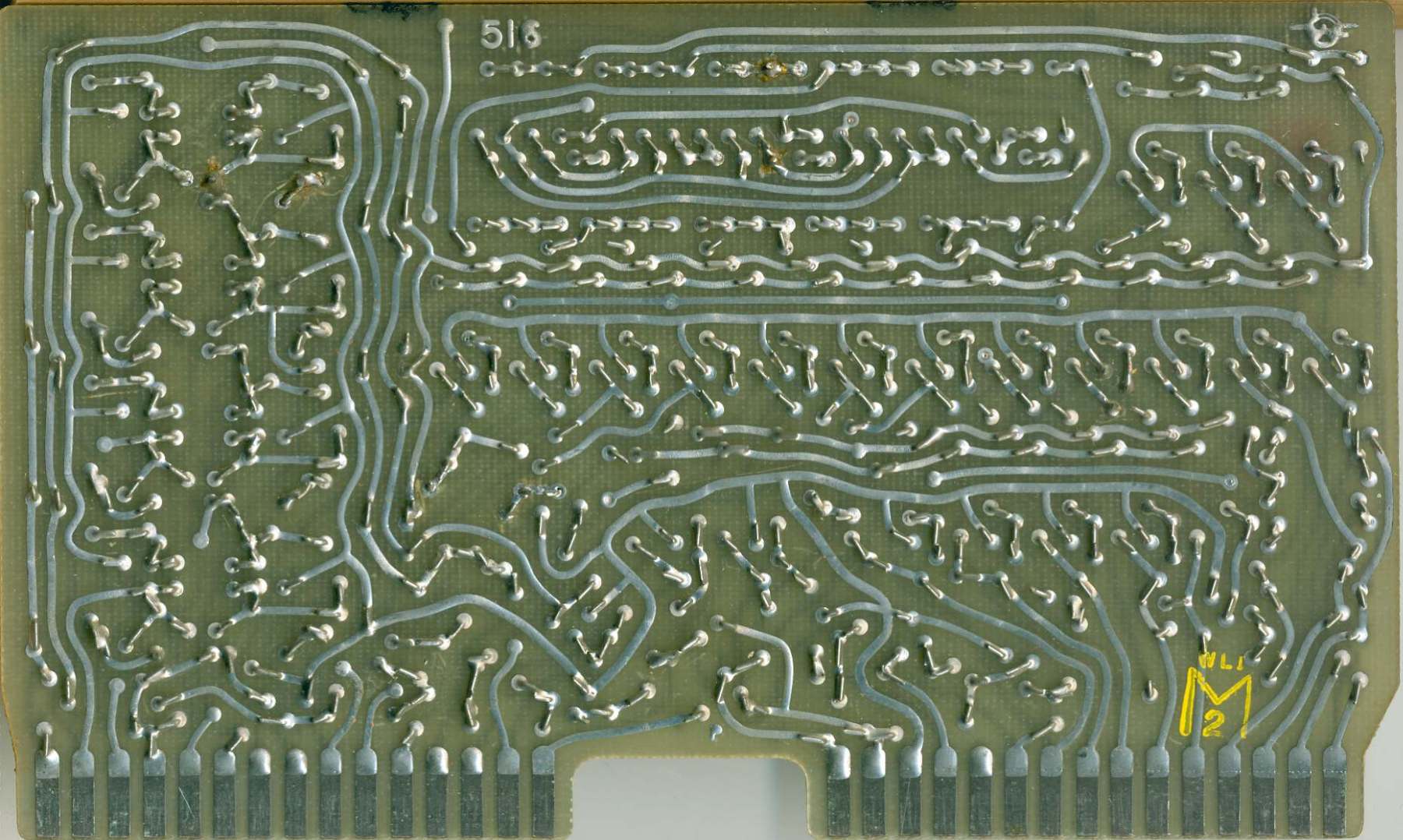

Wang 360E Calculator Circuit Board 516 Wang 360E Calculator Circuit Board 516

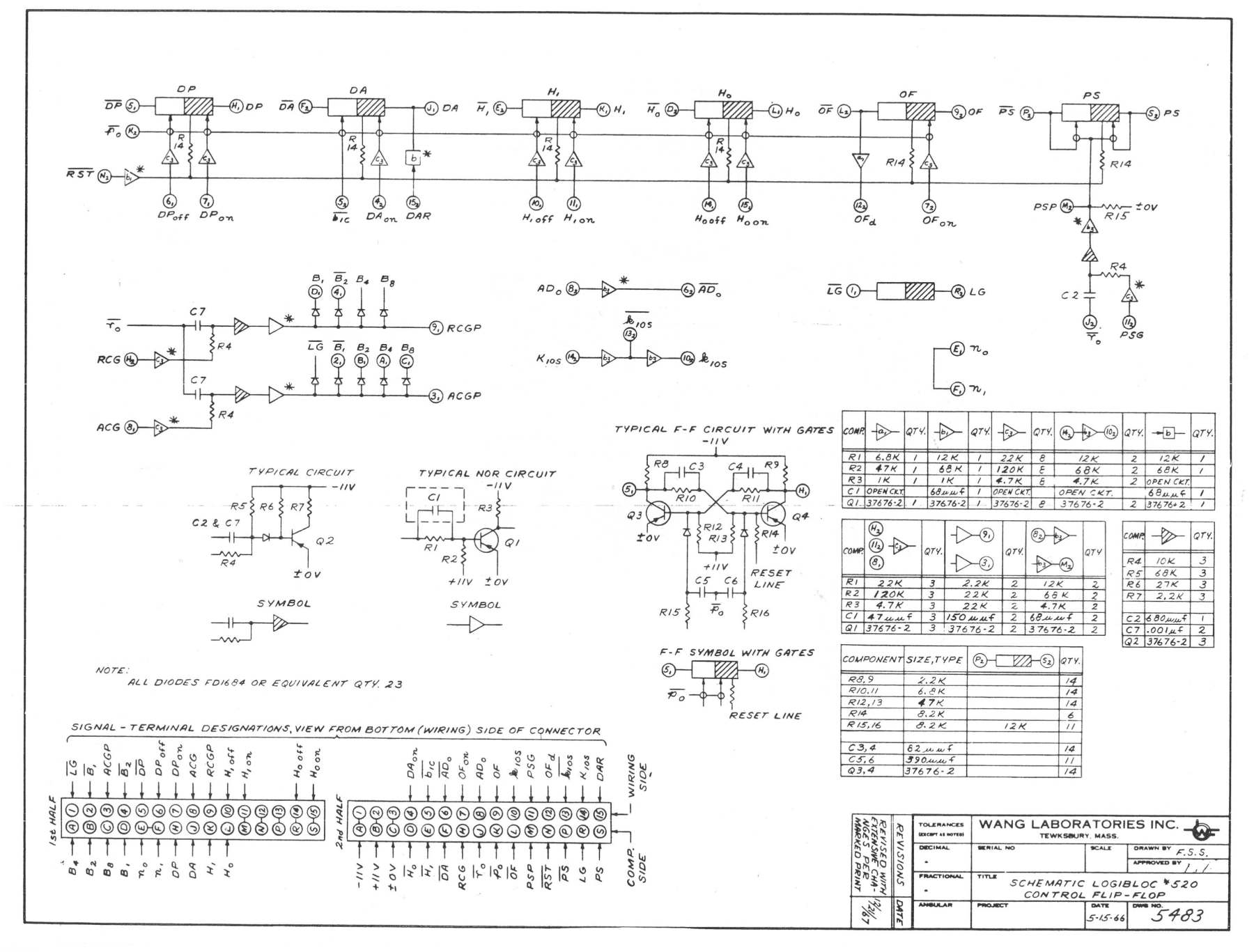

520 System State Flip Flops [Circuit]

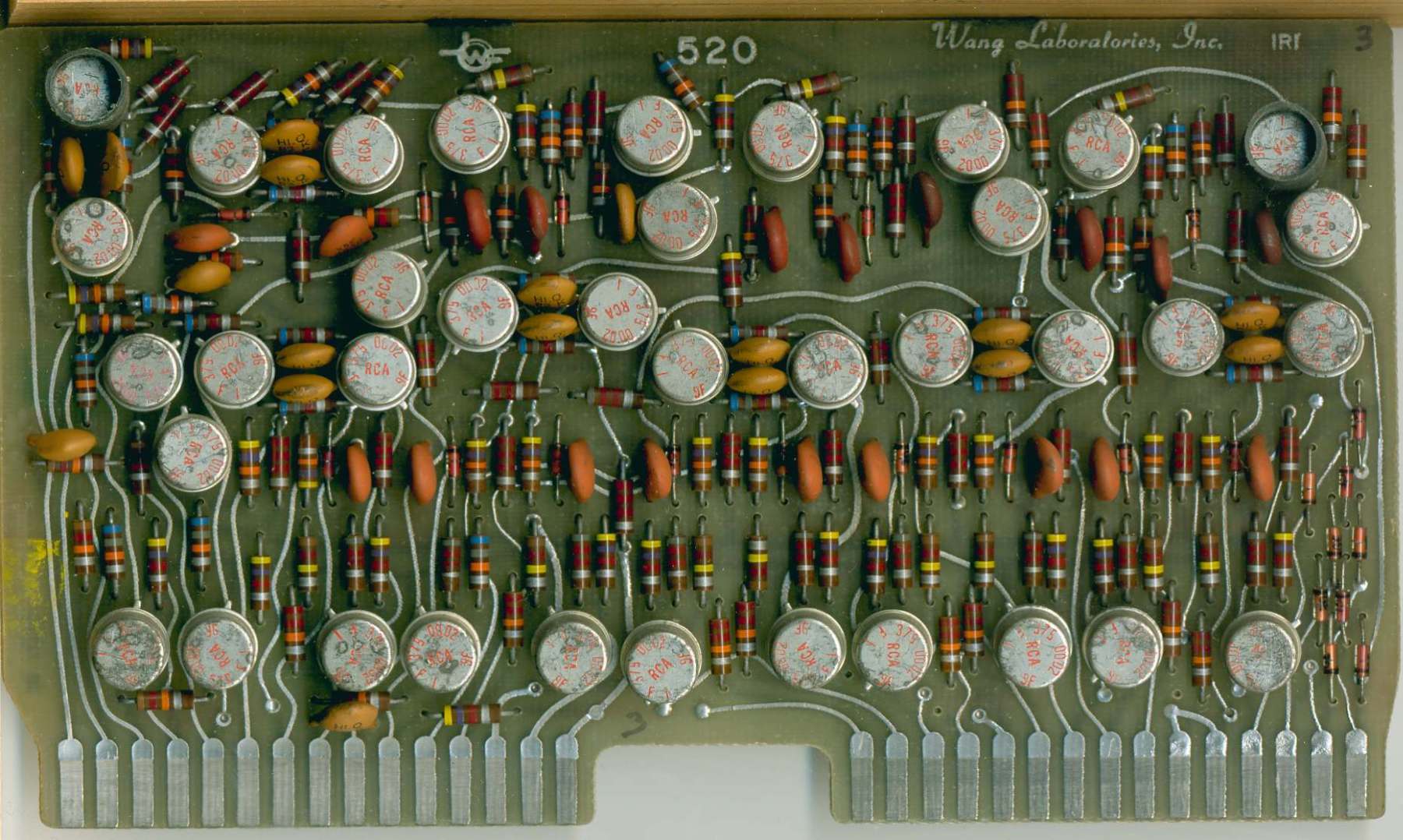

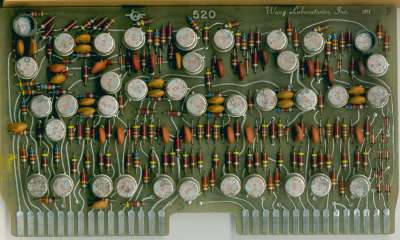

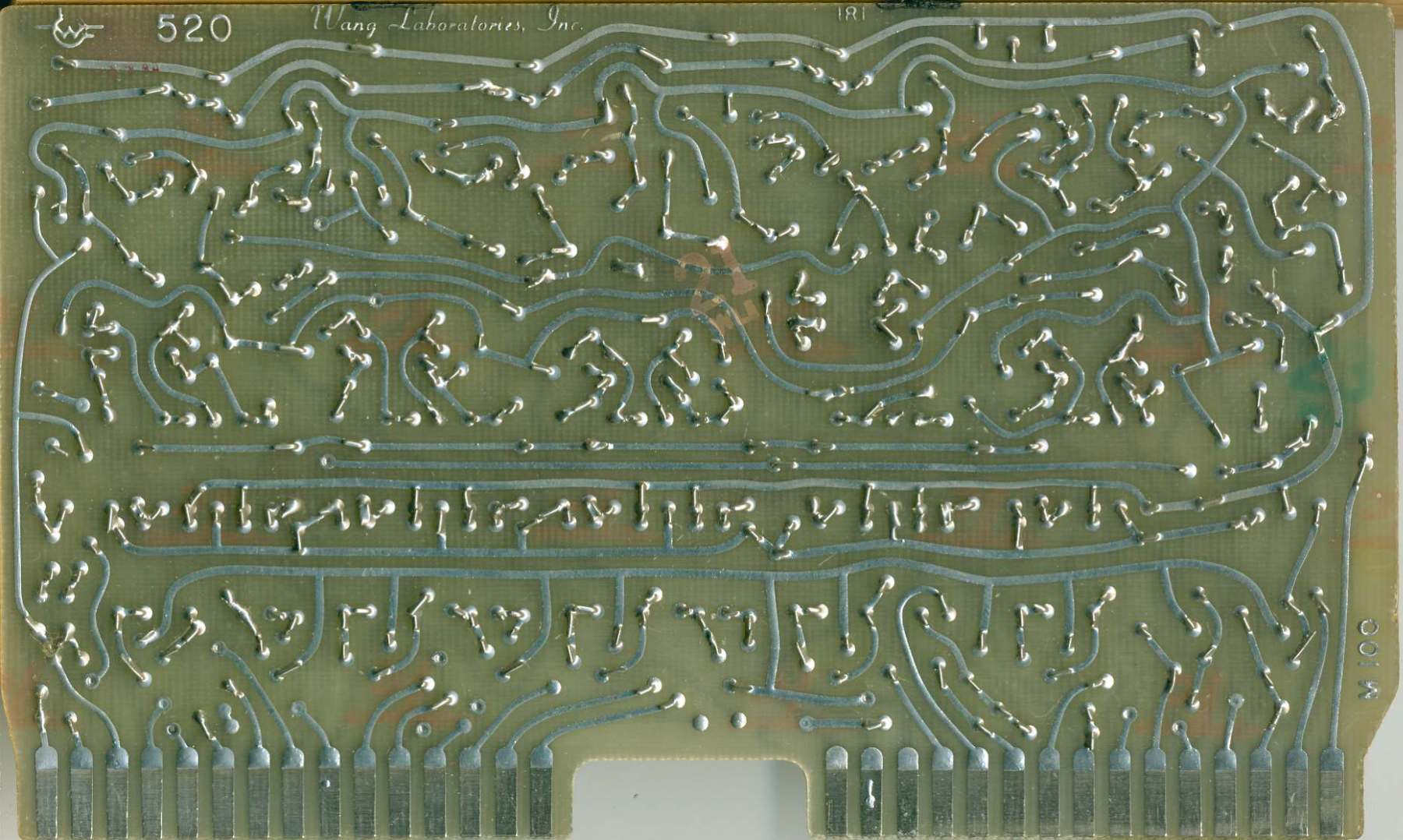

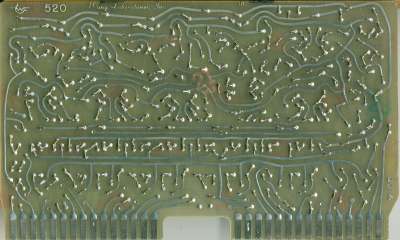

Wang 360E Calculator Circuit Board 520 Wang 360E Calculator Circuit Board 520

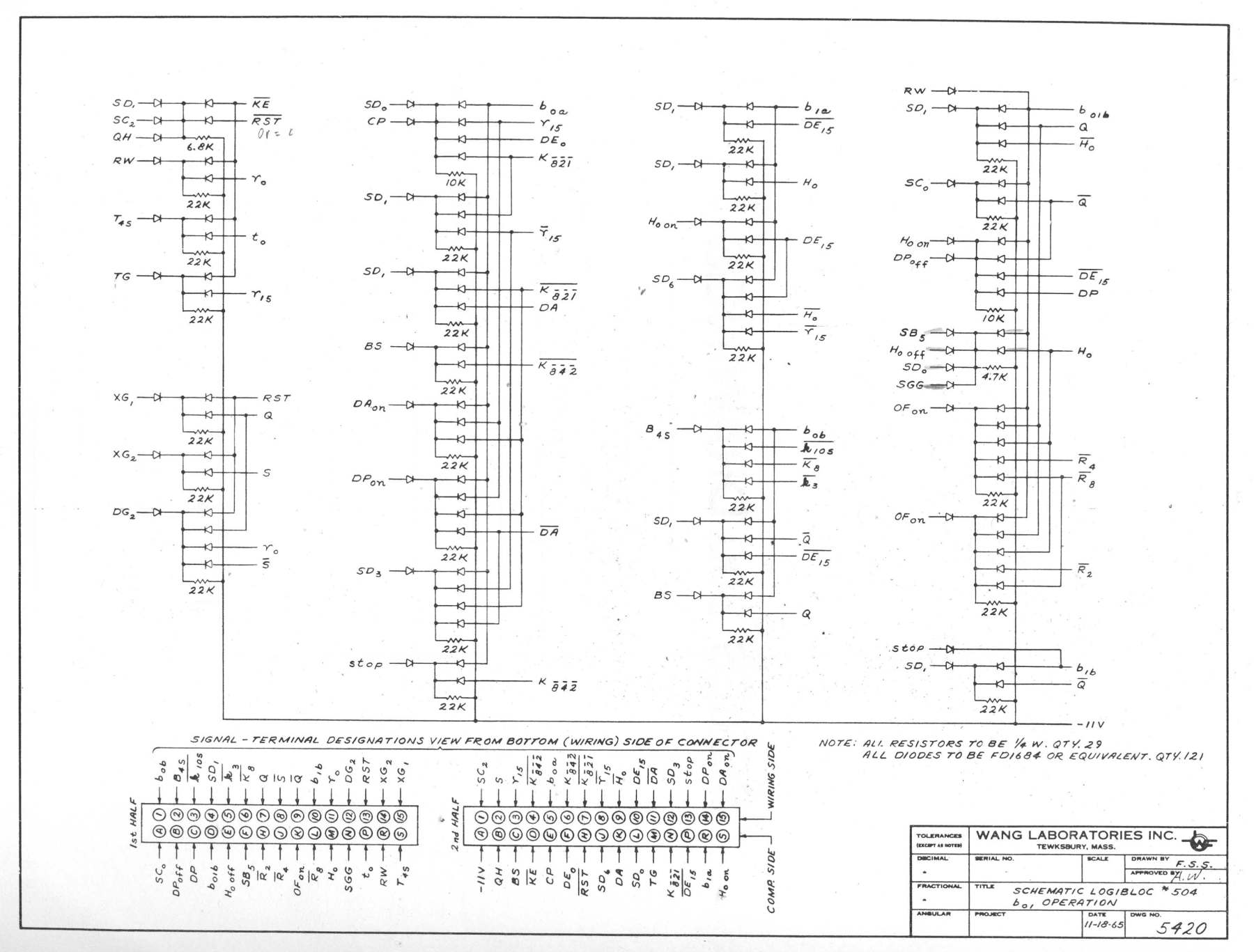

504 b0/1 States [Circuit]

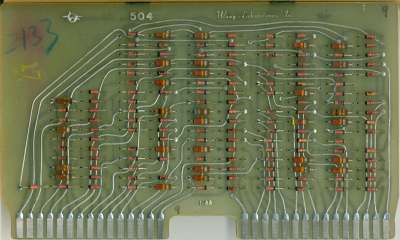

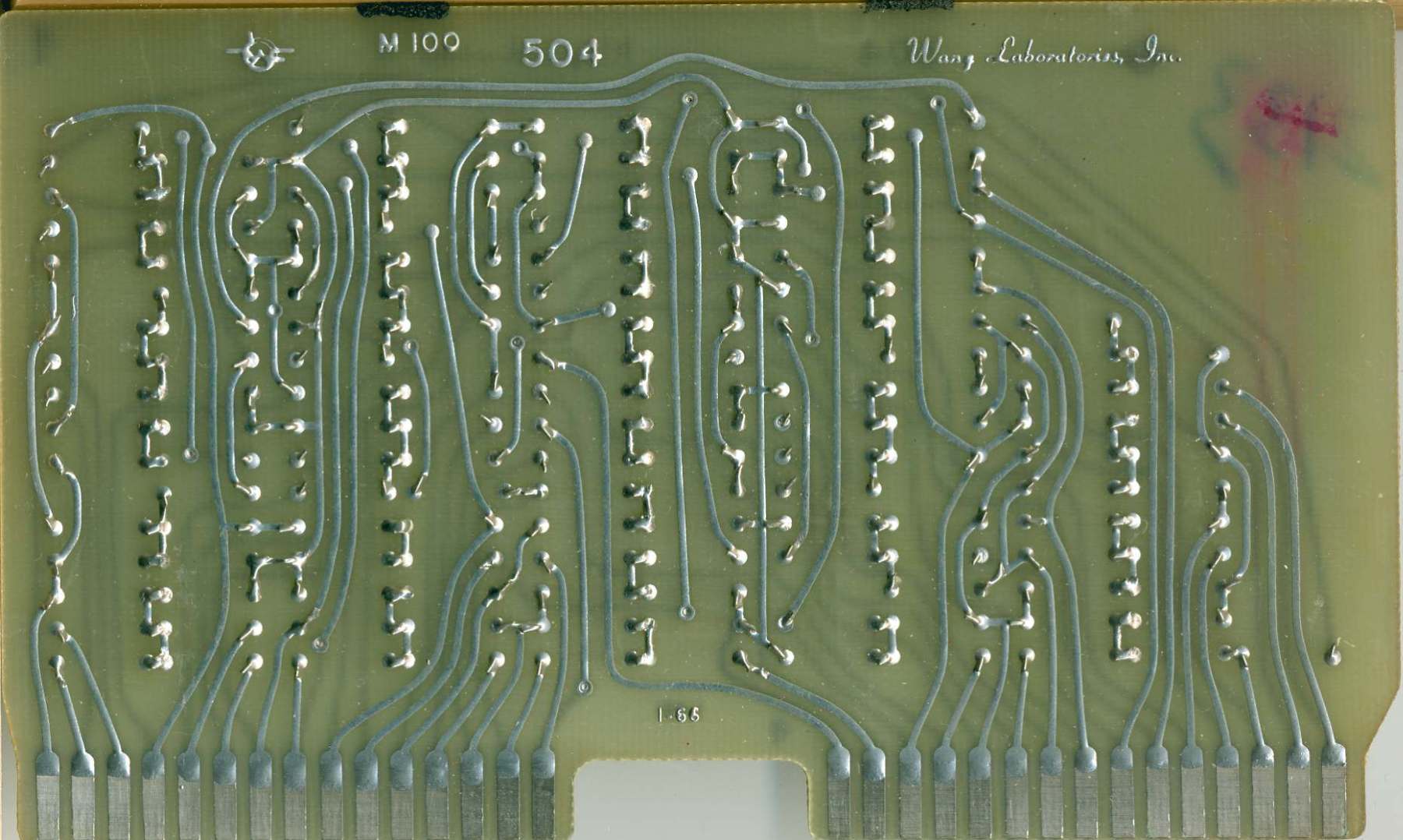

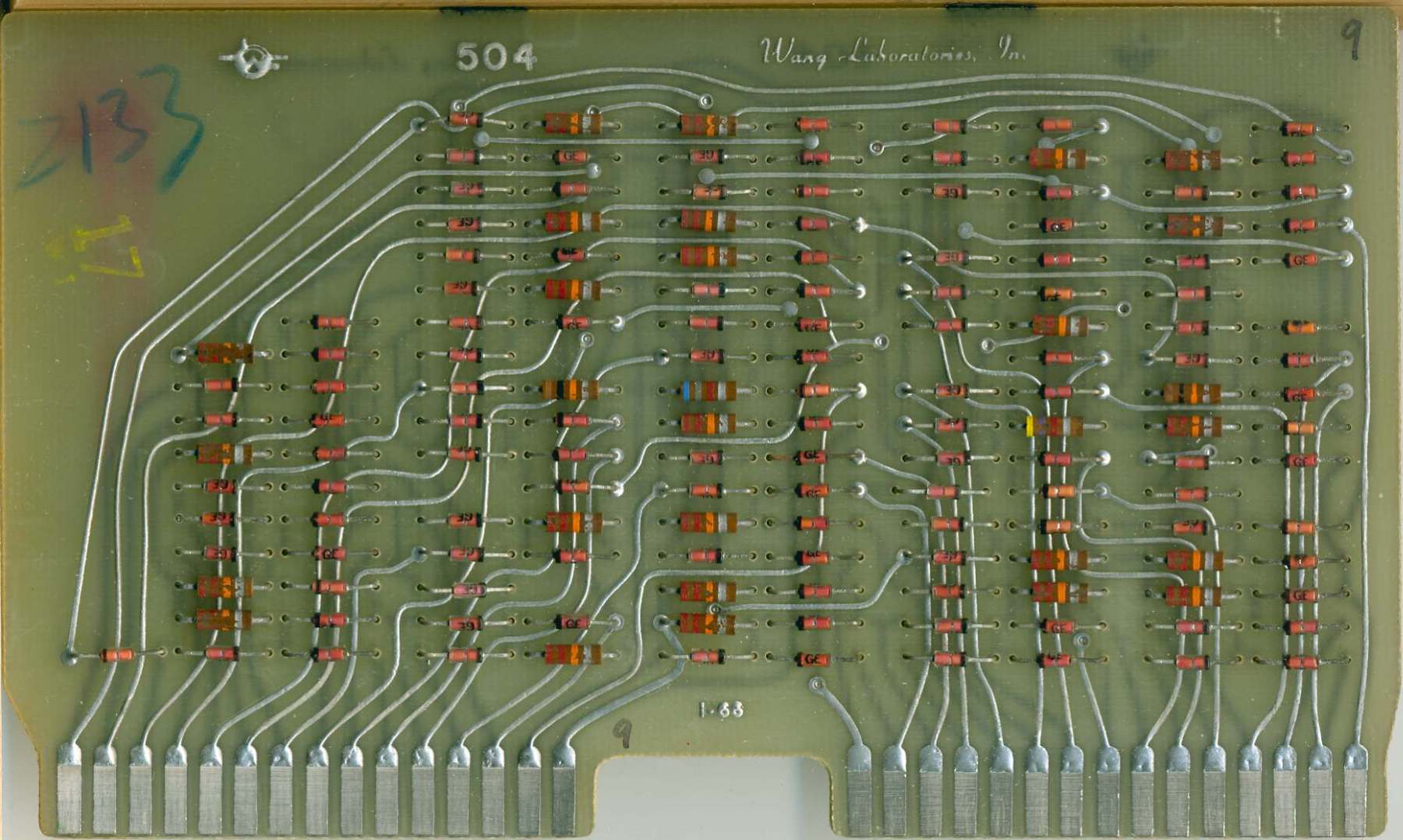

Wang 360E Calculator Circuit Board 504 Wang 360E Calculator Circuit Board 504

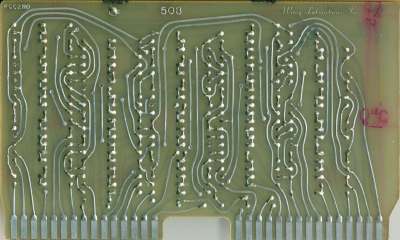

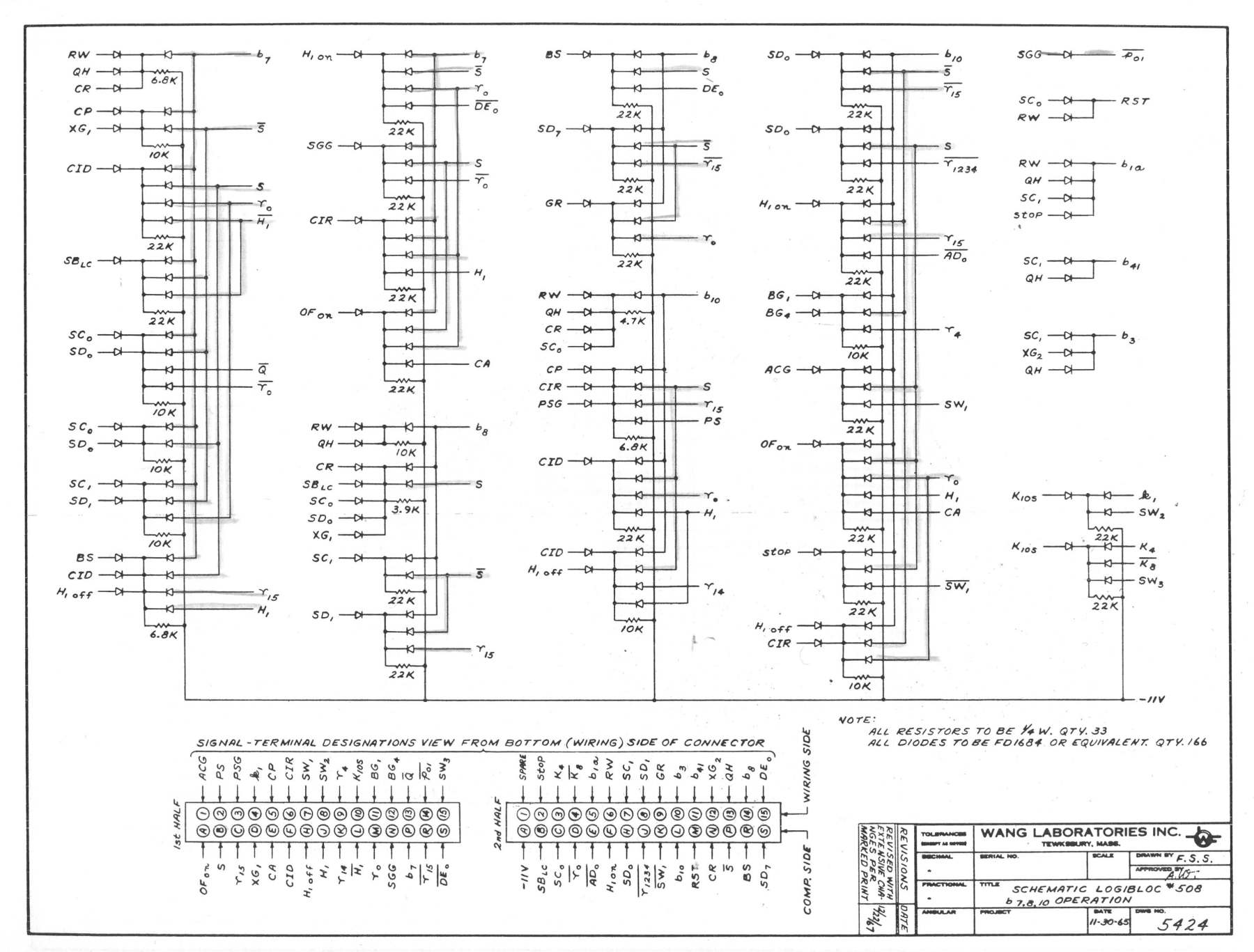

508 b7/8/10 States [Circuit]

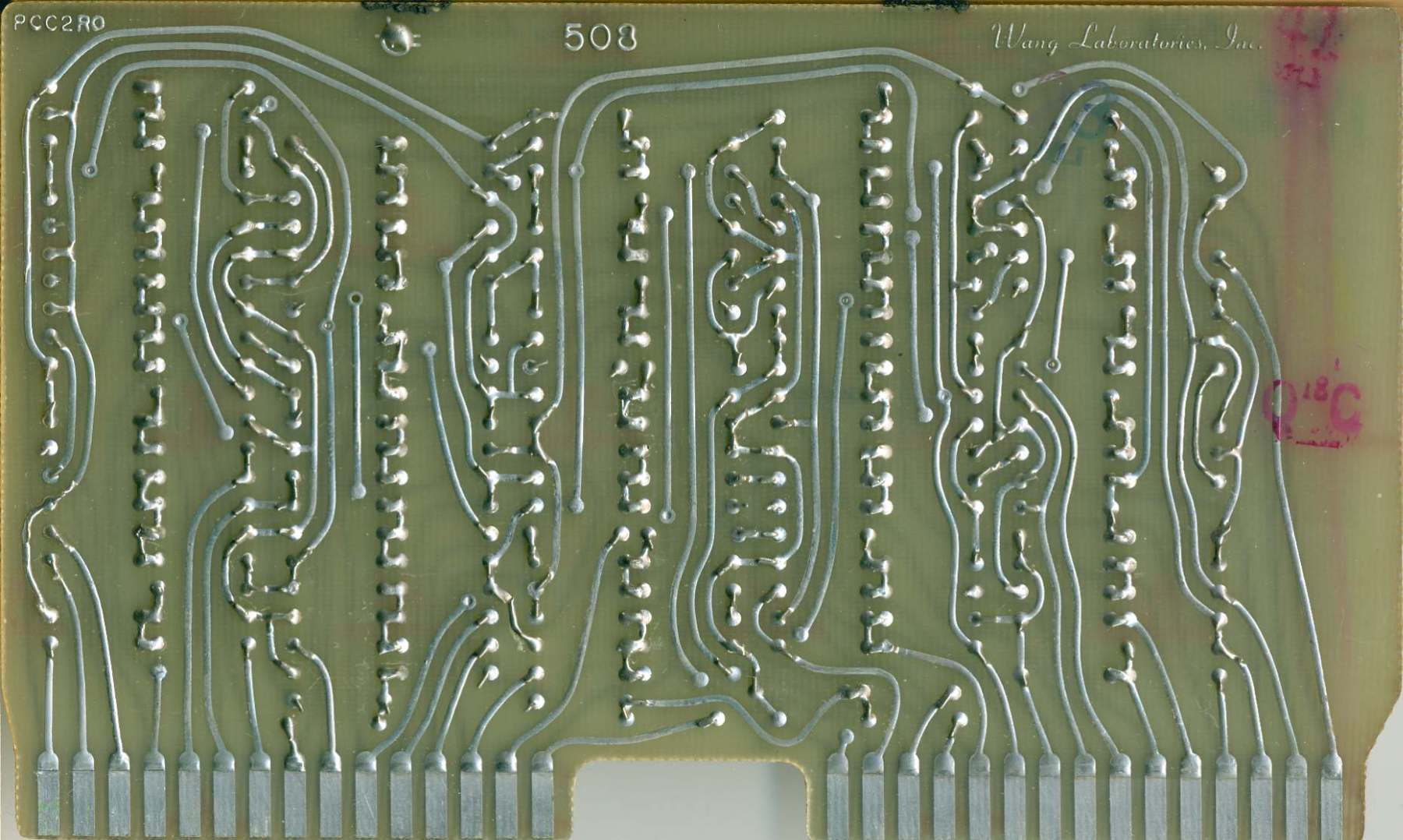

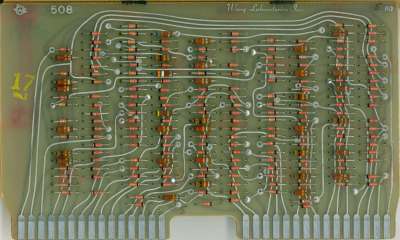

Wang 360E Calculator Circuit Board 508 Wang 360E Calculator Circuit Board 508

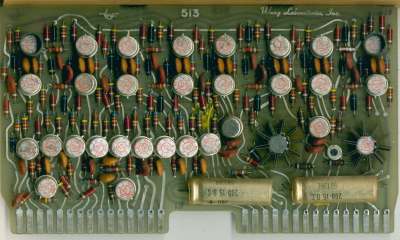

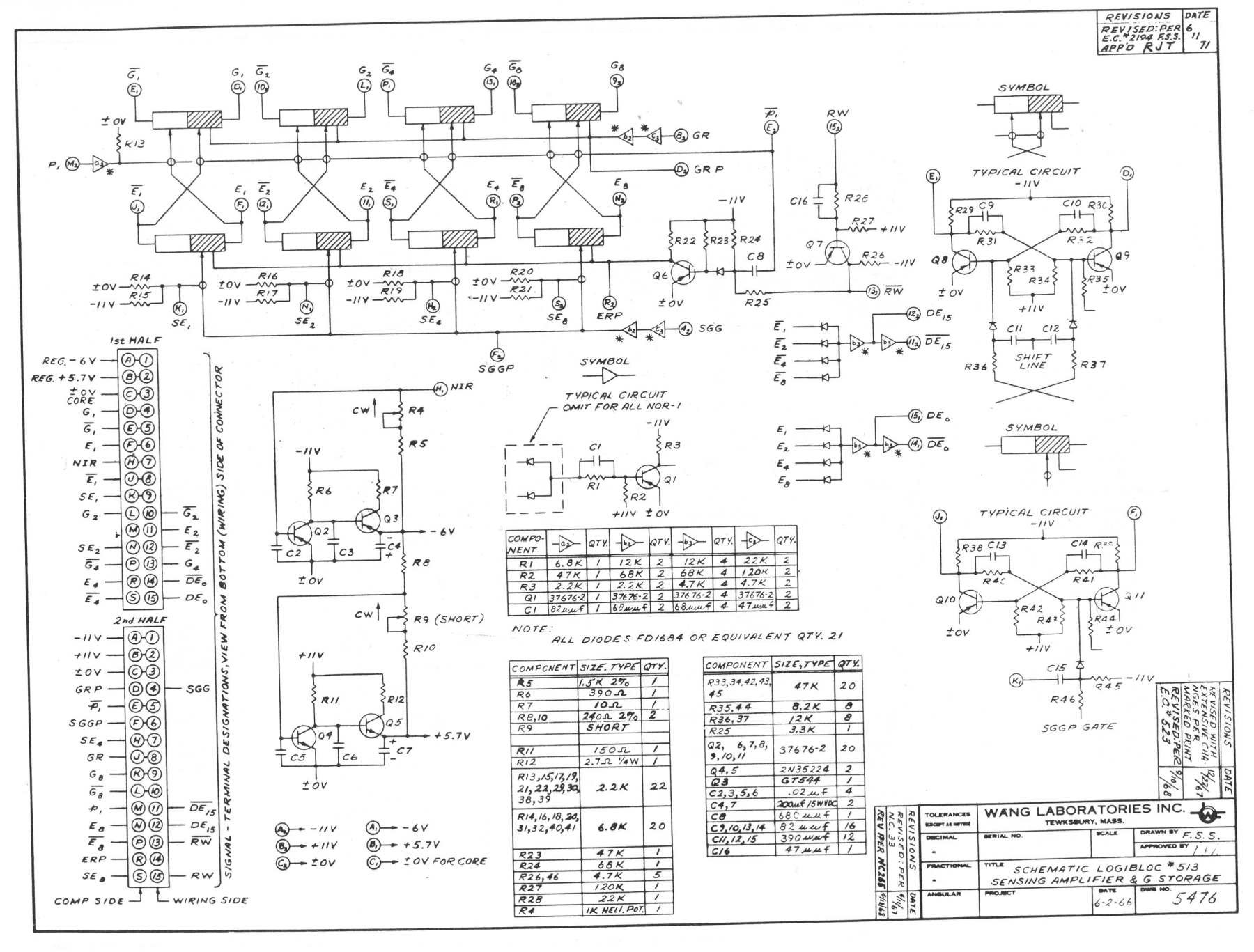

513 G Register & Core Current Source [Circuit]

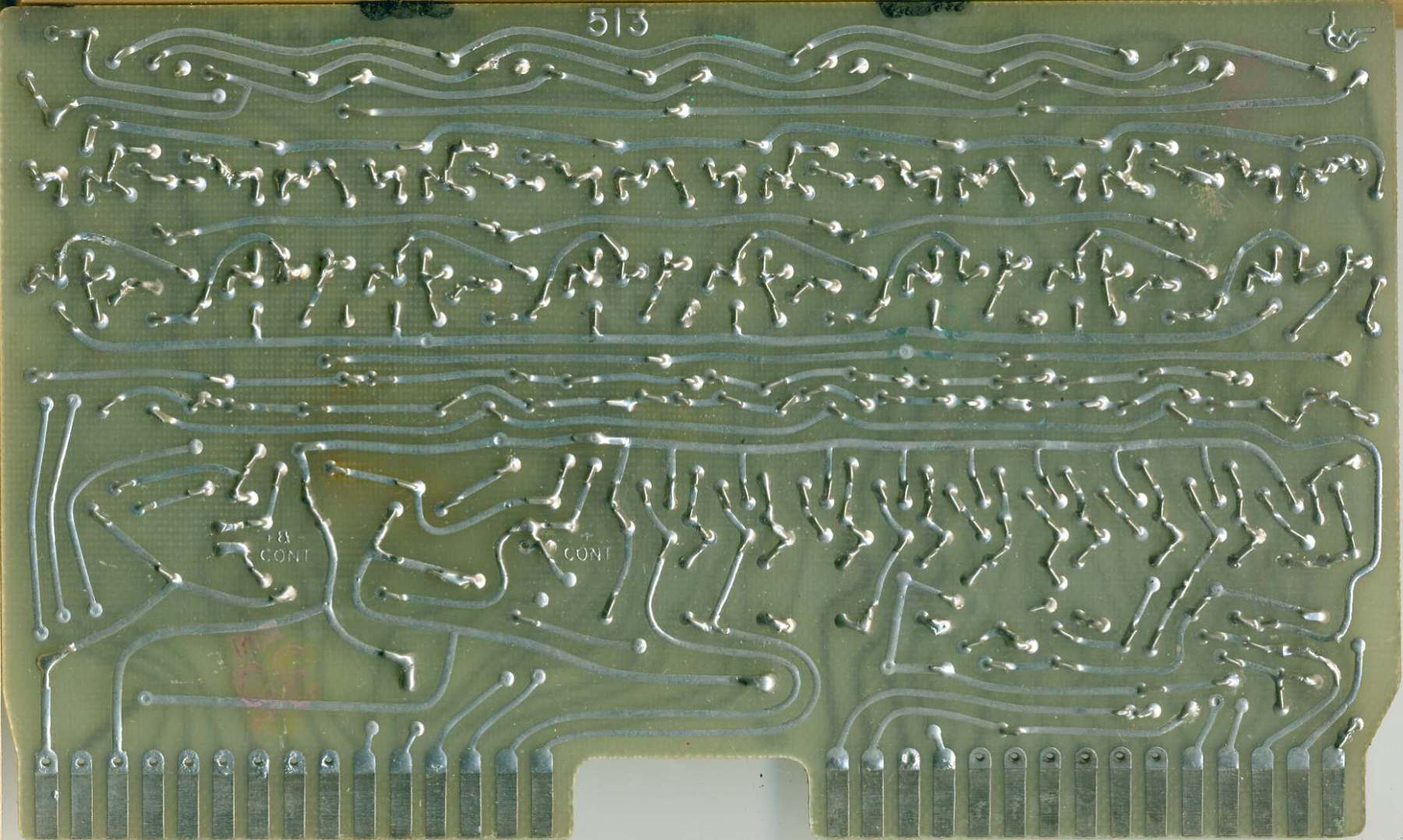

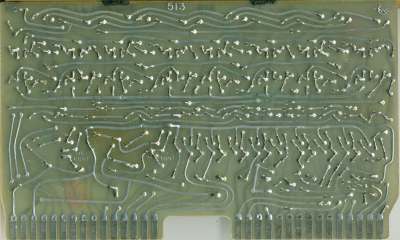

Wang 360E Calculator Circuit Board 513 Wang 360E Calculator Circuit Board 513

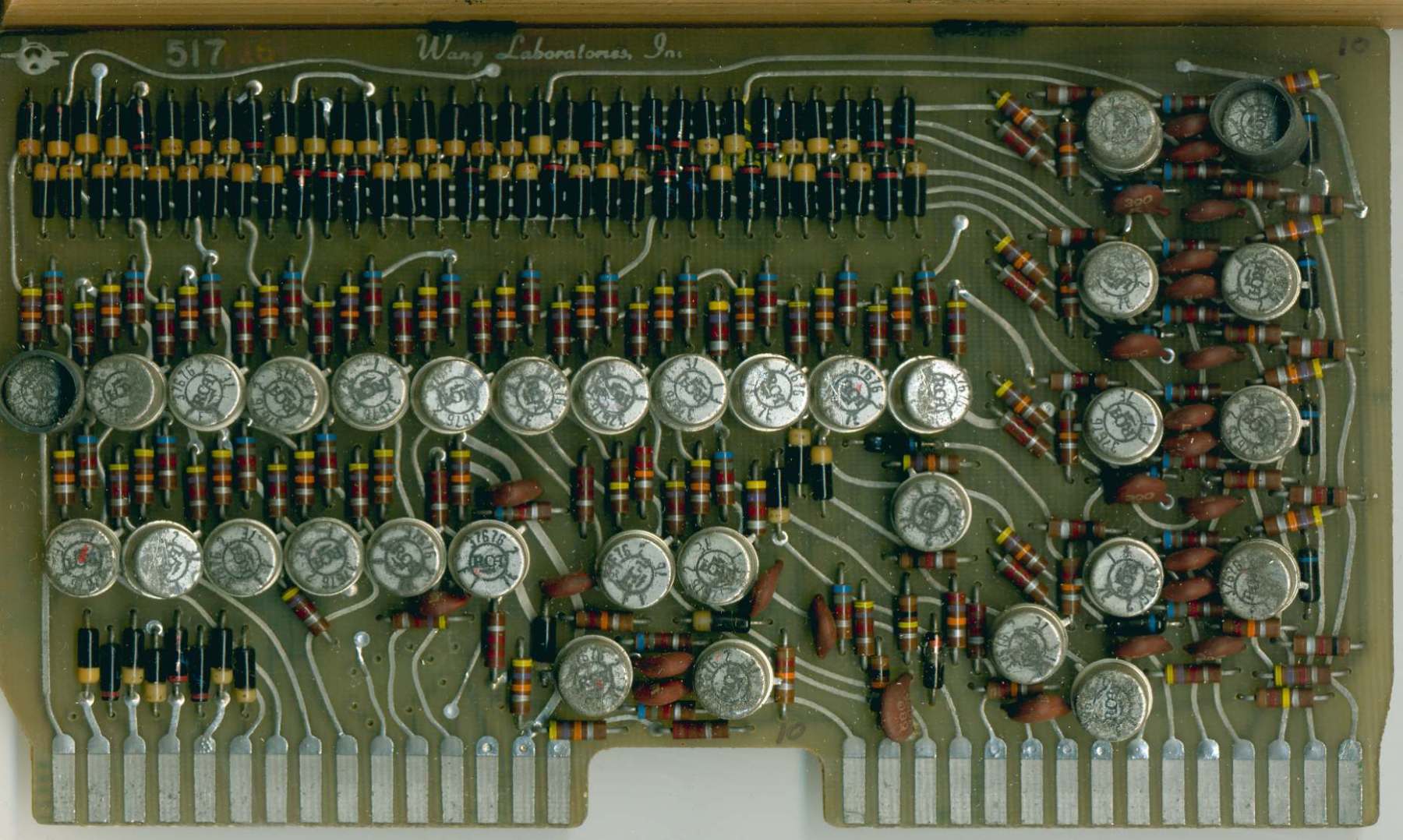

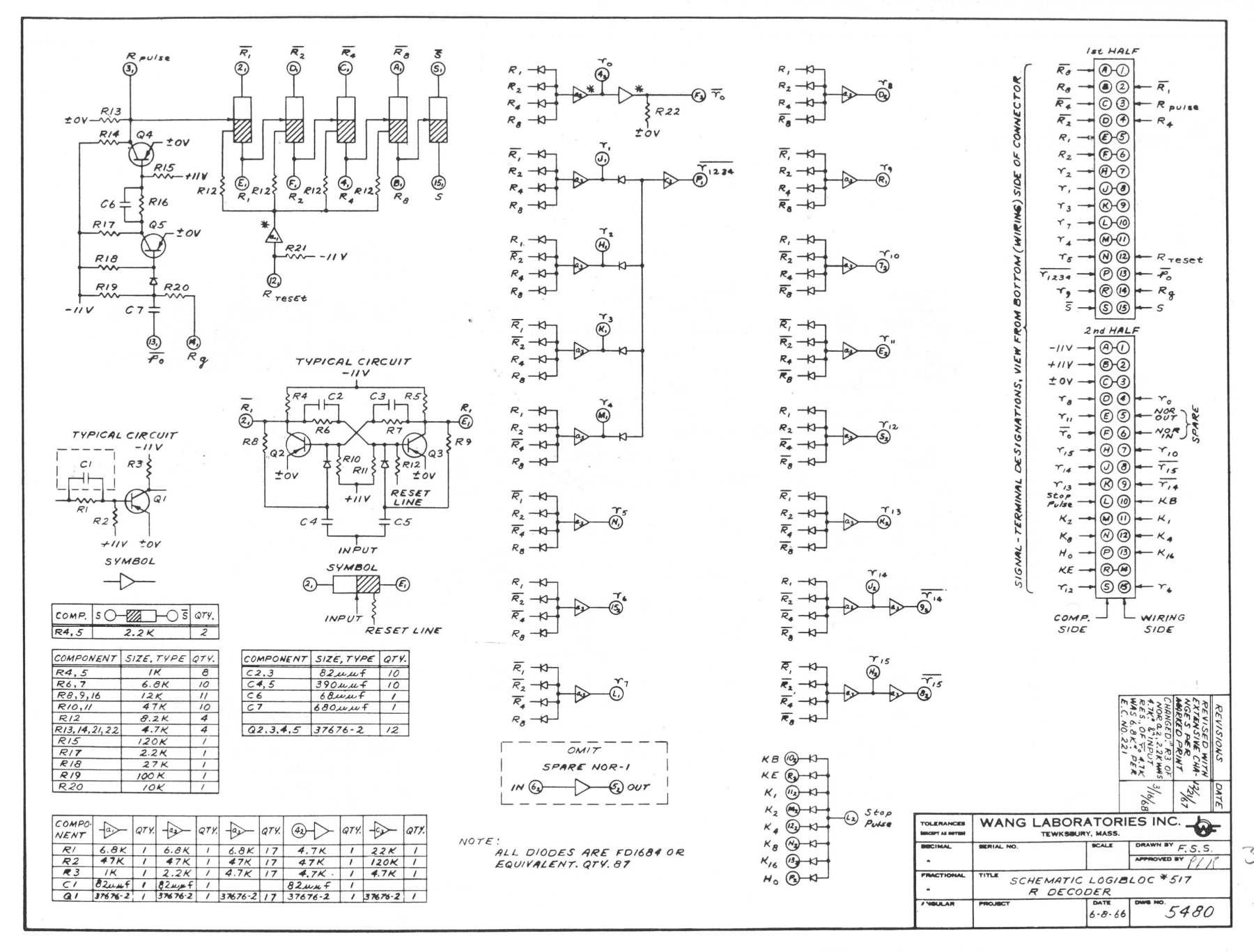

517 R Counter [Circuit]

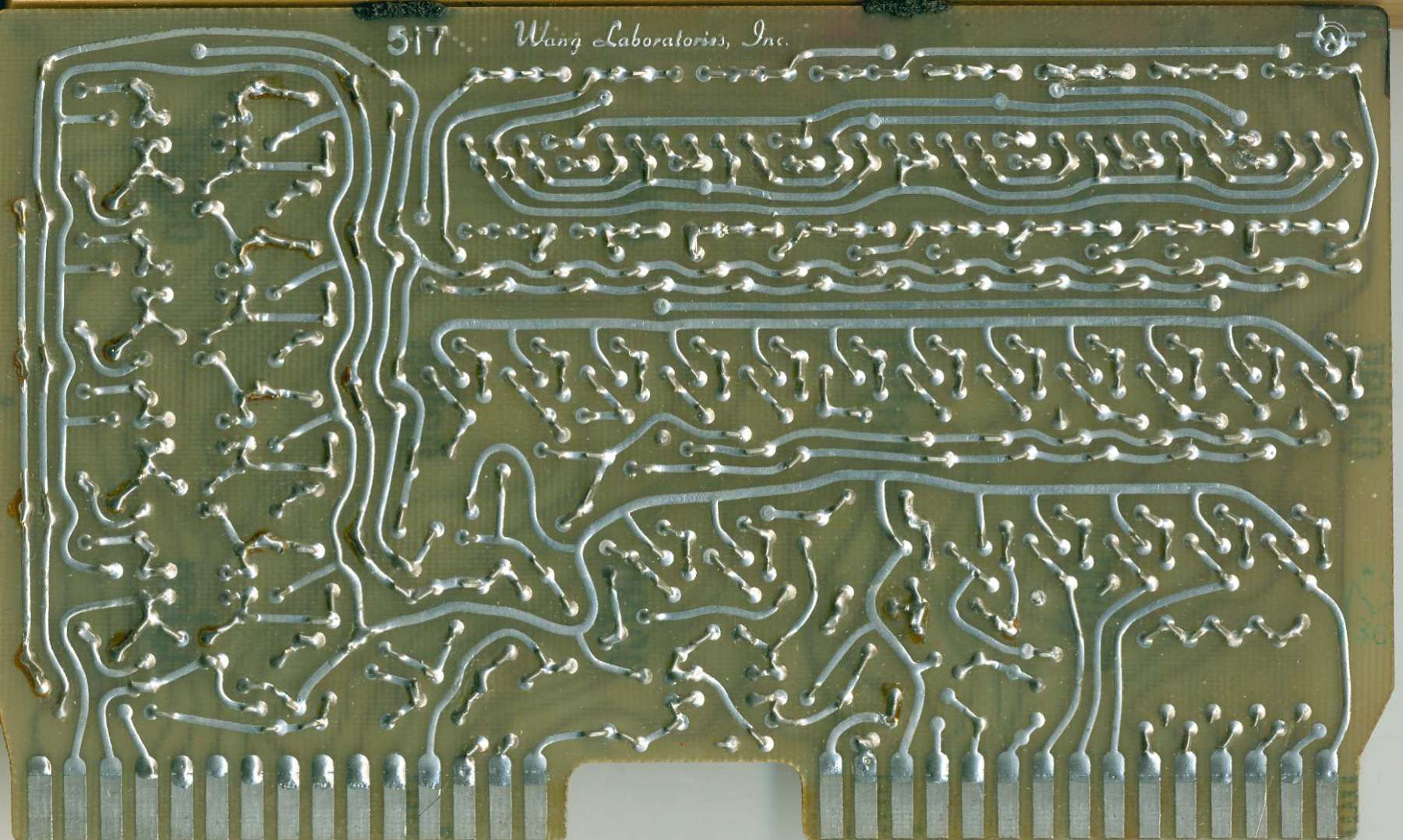

Wang 360E Calculator Circuit Board 517 Wang 360E Calculator Circuit Board 517

527A Core Memory [Circuit]

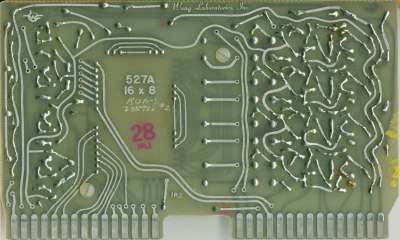

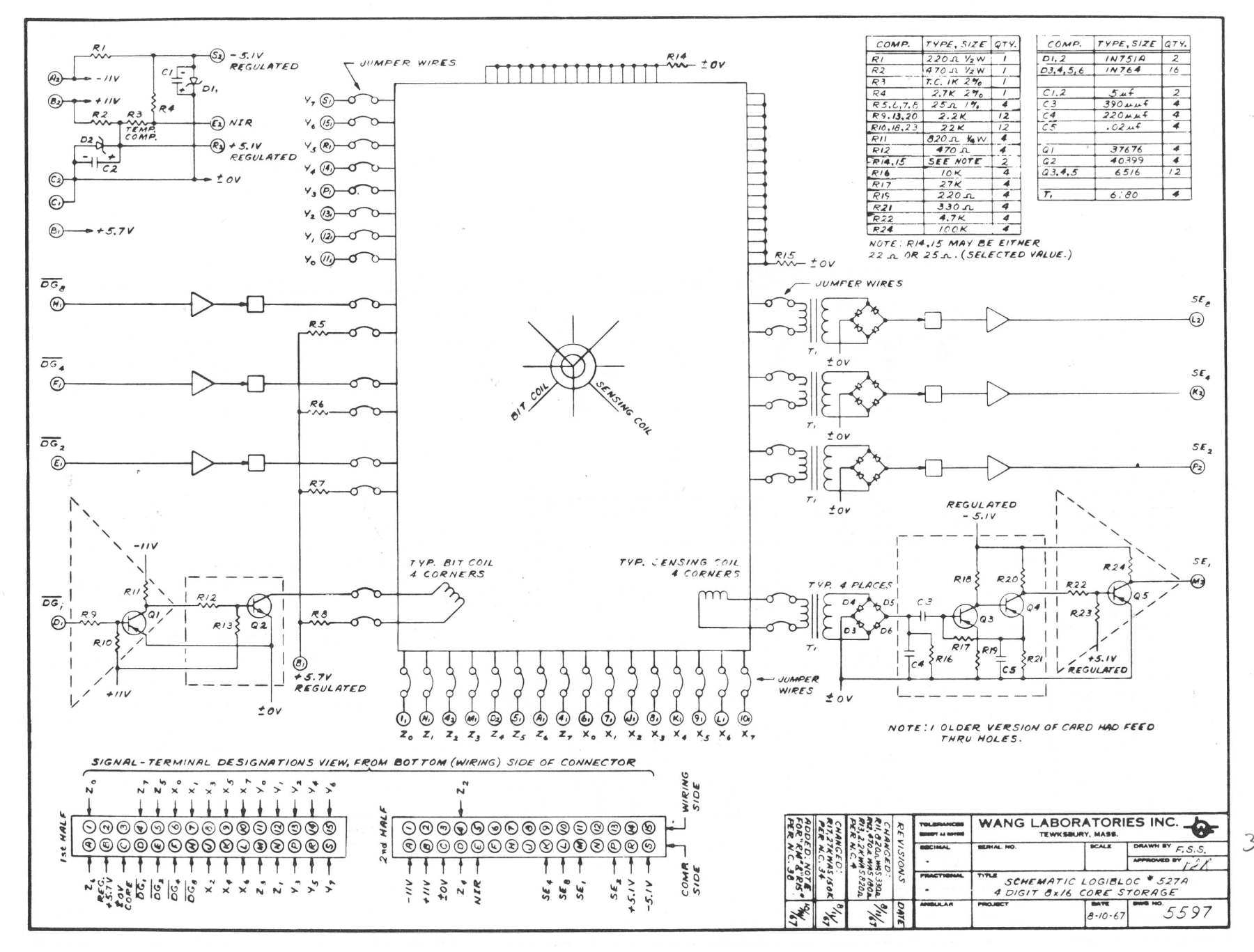

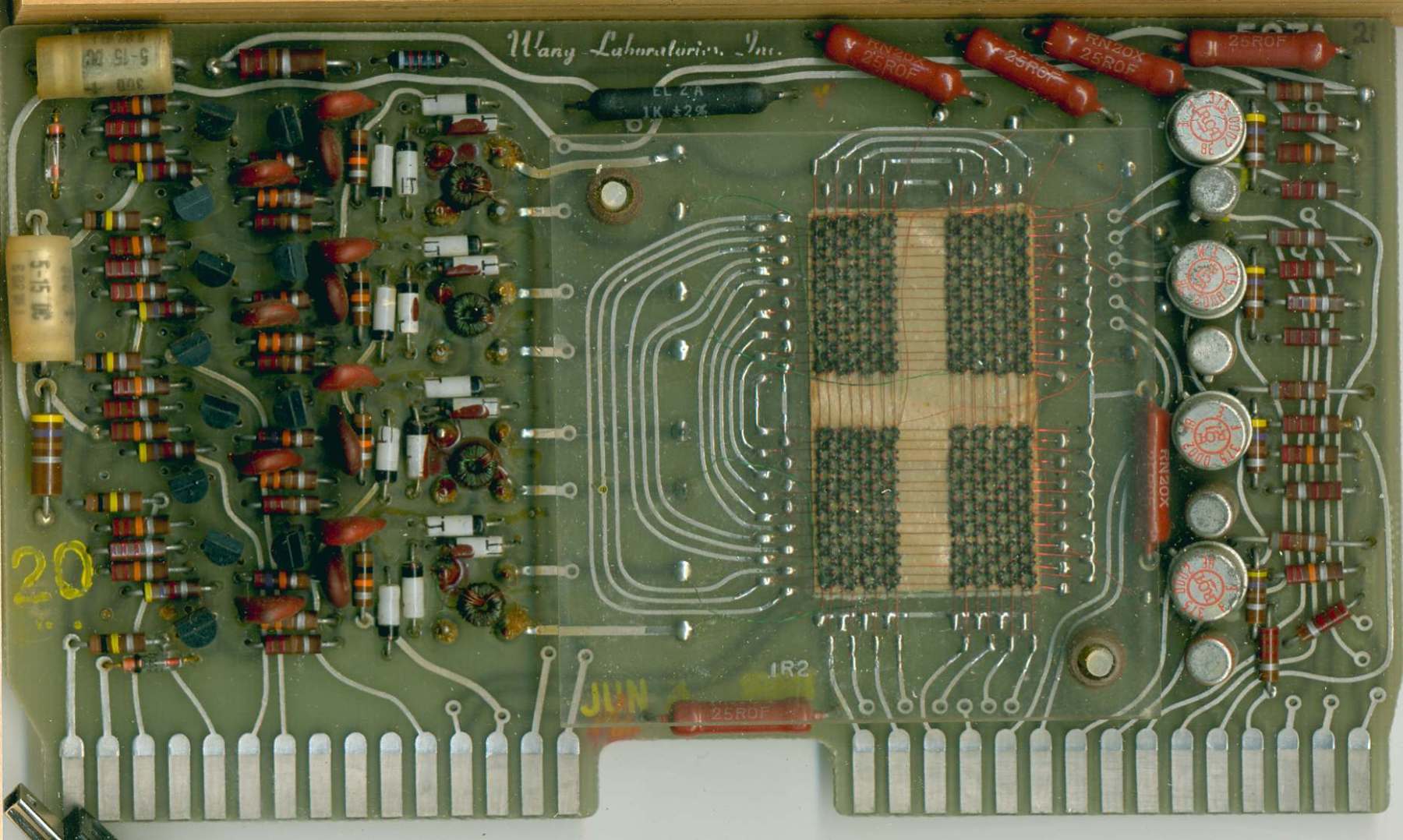

Wang 360E Calculator Circuit Board 527A Wang 360E Calculator Circuit Board 527A
